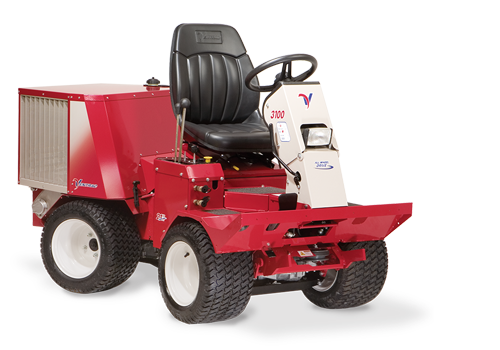

3121 3121 Compact Tractor

3121

Product Overview

This product has been discontinued.

Good things come in small packages and the same is true for the Ventrac 3100. The 3100 features a 21HP Gas 2-cyl(627cc) B&S Vanguard Engine.

This power-packed unit features All-Wheel-Drive, Power Steering, Hydrostatic Drive, and more. The Ventrac Mount System allows you to change attachments quickly and efficiently, moving from job to job with minimal effort.

Equipped with a patented Tandem Drive Train, the 3100 efficiently transfers power to where it's needed for unparalleled performance and power.

Also standard on the 3100 is Ventrac's patented S.D.L.A. control, which allows for easy control of Speed,Direction, Lift and Auxiliary function all with one hand.

Combine these features with a tight 28 inch (71 cm) turning radius and you will find the 3100 can tackle jobs reserved for much larger, less maneuverable machines.

MODELS

3121 LE, 3100 VANGUARD M38 GAS NA 39.31300

View all models in the LE3100 series.

ACCESSORY OPTIONS

70.3020-99 KIT, LE SUSPENSION SEAT -FCTRY

70.3019-99 KIT, TILT STEERING 3400 FACTRY

70.3014-99 KIT, WEIGHT TRANSFER 3400FCTRY

53.0115-99 WHEEL, ASM18X11X10 KNOB-FACTRY

RESOURCES

3121 SPECIFICATIONS

Measurement System:

Specifications 39.31300
Info
Sales Model 3121
Full Description LE, 3100 VANGUARD M38 GAS NA
Product Type Tractor
Engine
Engine Manufacturer B&S Vanguard
Model # Vanguard 385777
Horsepower 21 hp (20.1 hp gross @3200)
Engine Disp. 627 cc
Num. of Cylinders 2
Cooling Air
Fuel Capacity 5.4 gal
Fuel Type Gas
Drive System
Drive AWD All Wheel Drive
Dimensions
Overall Height 47 in
Overall Length 72 in
Overall Width 4012 in
Weight 850 lbs
Wheelbase 38 in
Tires
All Terrain standard 18x11-10
Turf standard 18x1012-10
General
Turning Radius 28 in
Wheelbase 38 in

Downloads

V-Plus Warranty:

Residential: 3 year*
Commercial: 2 year*

Accessories
