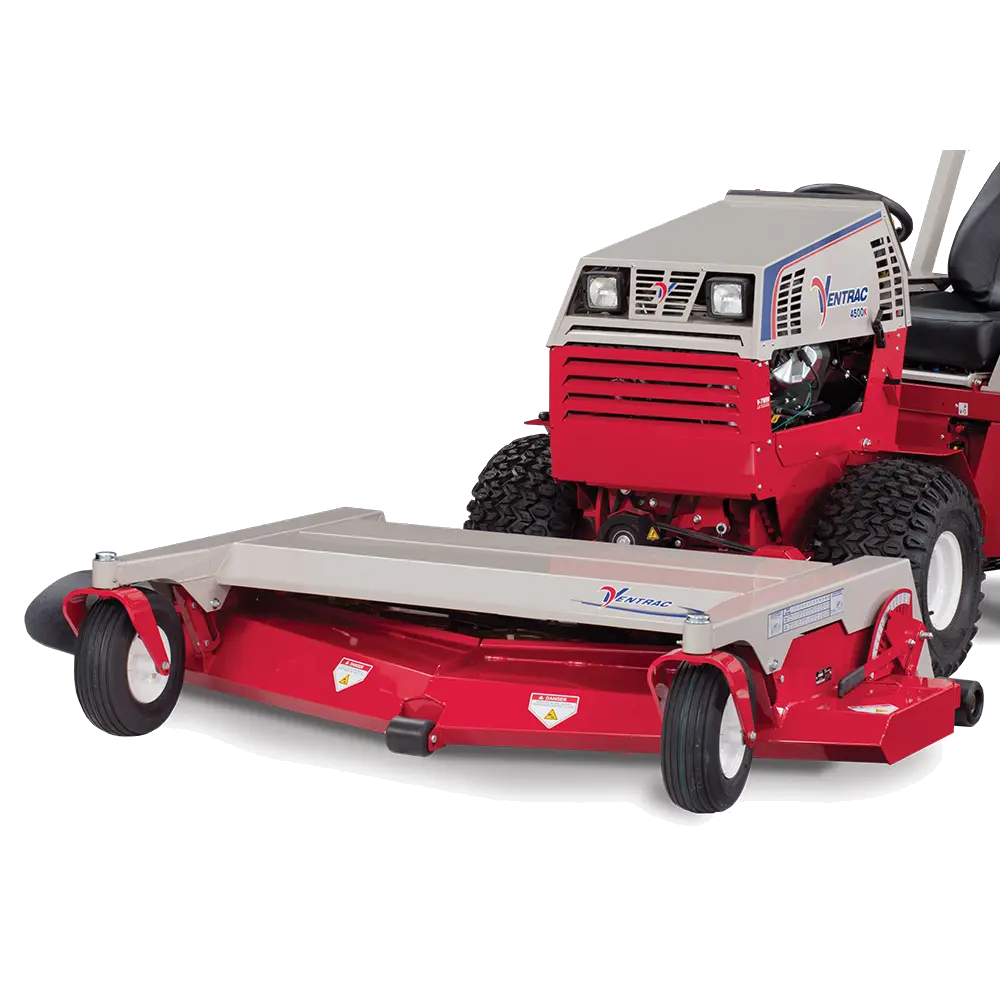

Complete Mower Deck
The Ventrac HM602 Mower Deck utilizes a rugged, all steel frame design, which suspends the Ventracs progressive discharge deck. This design gives you a high efficiency grass discharge for a better quality of cut by moving more grass efficiently through the deck tunnel. With the removal of two pins beneath the cross frame, the deck can be easily tilted to a near vertical position for maintenance and storage. The HM602 deck offers full-width rear rollers with large pneumatic front swivel caster tires to float over the terrain independent of the tractor. Engage the tractors integrated adjustable weight transfer system which transfers a percentage of the mower weight back to the tractor, for increased traction and stability on slopes and inclines. The Ventrac HM602 finish mower features full width rollers for exceptional yard striping. This professional grade mower is built to give you maximum performance and productivity.
HM602 Models
Base Specifications
| Info | |
|---|---|
|
Product Image
|
|
|
Model
|
|
|
Description
|
Side Discharge Finish Mower 60
|
|
Product Type
|
|
|
Sku
|
39.55105
|
| Dimensions | |
|
Attachment Type
|
Mower
|
|
Product Type
|
Attachment
|
|
Front Mount
|
|
|
4000 Series Mount
|
|
|
Mower Type
|
Finish
|
| Mower Specs | |
|
Cutting Positions
|
13(plus low & high range)
|
|
Cutting Width
|
60in
152.4cm
|
|
Cutting Heights (Standard)
|
1.125in
2.858cm
|
|
Deck Suspension
|
2 front tires with full width rear roller
|
|
Discharge Type
|
Side
|
|
Number of Blades
|
3
|
|
Flip-Up Deck
|
standard/optional
|
|
Discharge Deflector
|
Rubber
|
|
Blade Type
|
low lift
low lift
|
|
Deck Construction
|
Multi-Gauge5/16 inch (7.9 mm) at spindle mount
|
|
Cutting Height Adjustment Type
|
Single leverquick select
|
| Dimensions | |
|
Length
|
52in
132.1cm
|
|
Height
|
16in
40.64cm
|
|
Weight
|
385lb
174.6kg
|
|
Length with KT Tractor
|
125.8in
319.4cm
|
|
Width with Chute
|
73in
185.4cm
|
|
Length of Tractor with Deck Up
|
102in
259.1cm
|
