KR502 Landscape Rake

Name: Landscape Rake
Brand: Ventrac

The 49-inch Ventrac KR Landscape Rake performs a variety of landscaping tasks. From soil preparation, leveling ground, to removing rocks and debris, the KR502 works with ease and efficiency.

The curved tines on the Landscape Rake can be used in either direction. Unlike pull-behind units,the Ventrac Landscape Rake is front mounted, allowing the operator to keep material from being driven over. This minimizes compaction as well as making the Landscape Rake very easy to use. The Landscape Rake can also be mounted to the rear 3-Point Hitch with the Ventrac 3-N-1 Adapter for pulling material.

Front gauge wheels are adjustable front-to-back. If a wider surface area is needed, optional 10 -inch extensions are available, giving the operator an additional 20 inches of surface area.

Models Accessories

KR502 TERRA RAKE 39.55431
Starting at $2,675 MSRP*

*Taxes, shipping & handling, setup, freight and/or delivery charges are not included. Price shown is for informational purposes only. Consult an authorized Ventrac Dealer for complete details, pricing, warranty and safety information. All prices are shown in U.S. Dollars for products sold in the United States only.

70.4104 KIT, 12V FRONT 4500
70.4161 KIT, 12V FRONT 4520
70.4109 KIT, DUAL FRONT HYD AUX 4500
70.4164 KIT, DUAL FRONT HYD AUX 4520
70.8216 KIT, HYD HEIGHT ADJUST KR502
70.8035 KIT, KR HYD HEIGHT ADJ W/ DIRECTIONAL VLV
70.8034 KIT, TERRA RAKE EXTENSION

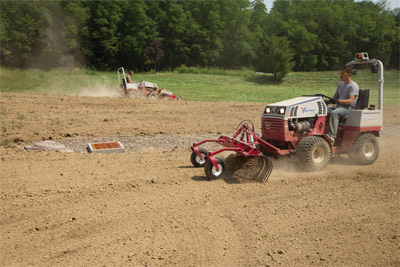

Enlarge Picture / Press Link · Ventrac Landscape Rake - Ventrac Landscape Rake being used to clean up dirt for a lawn installation at a new construction house.

Enlarge Picture / Press Link · Ventrac Landscape Rake

Enlarge Picture / Press Link · Ventrac Landscape Rake - Ventrac Landscape Rake being used to clean up lawn debris prior to seeding.

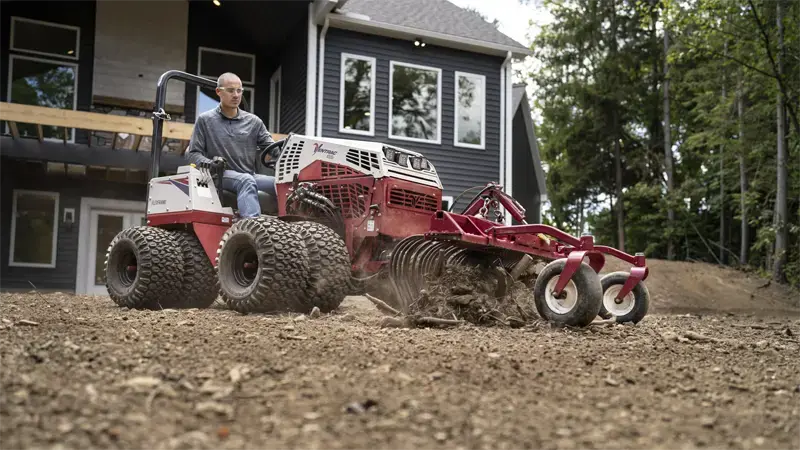

Enlarge Picture / Press Link · Ventrac 4500 & Terra Rake - Unlike pull-behind units,the Ventrac Landscape Rake is front mounted, allowing the operator to keep material from being driven over. This minimizes compaction as well as making the Landscape Rake very easy to use.

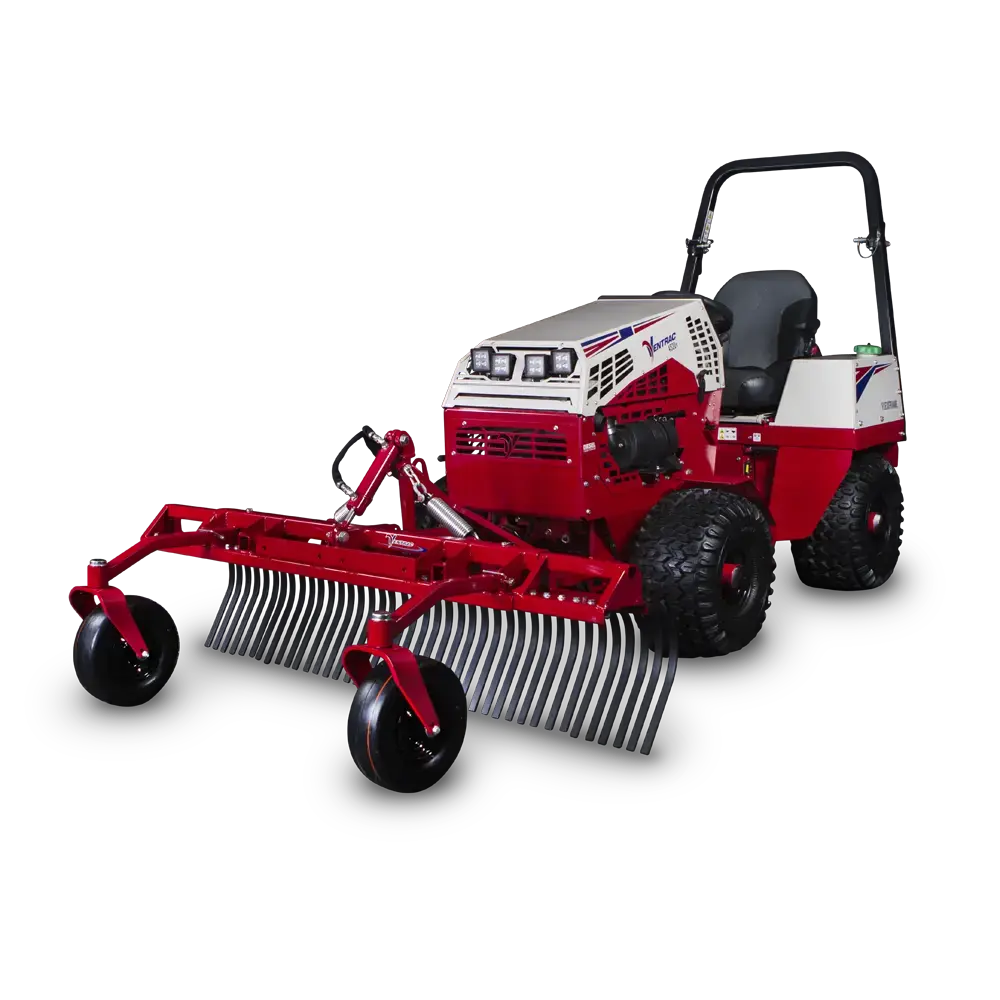

Enlarge Picture / Press Link · Ventrac Terra Rake Front Facing - The Terra Rake can be reversed to be pushed from the front in either direction.

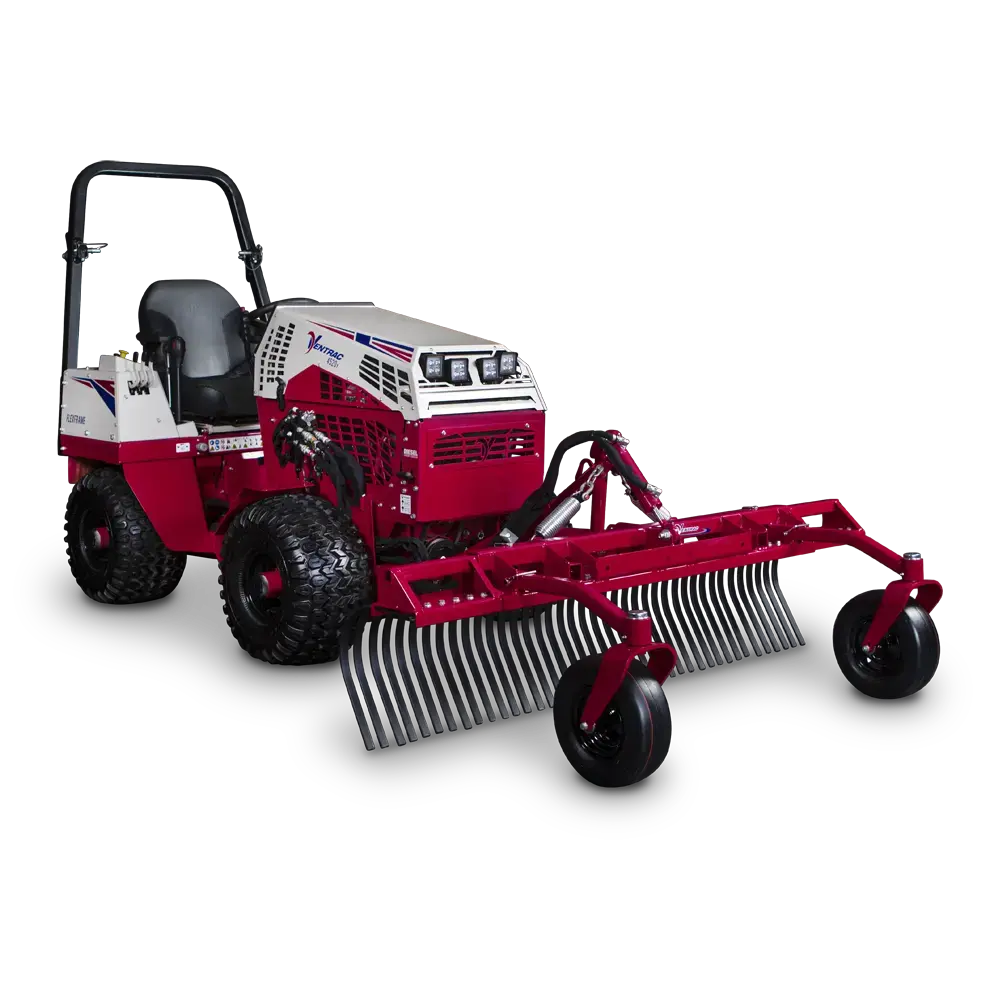

Enlarge Picture / Press Link · Ventrac Terra Rake Rear Facing - The Terra Rake can be reversed to be pushed from the front in either direction.

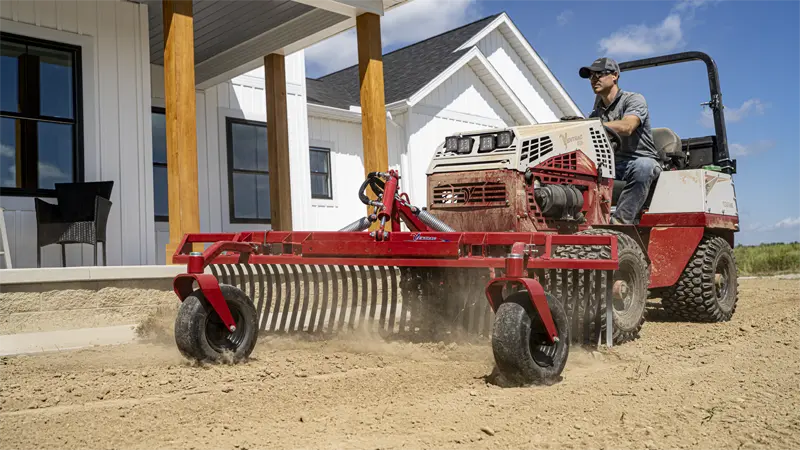

Enlarge Picture / Press Link · Ventrac 4500Y with Terra Rake - Add the perfect finishing touch to lawn prep with the 4500 and the Terra Rake

Ventrac Benefits

Clear Debris For New Lawns

Clear Areas Before Running Over Them

Smooth Out Gravel, Sand, & More

Ventrac Mount System

With a little practice, you can switch almost any attachment within a minute, without any tools or heavy lifting.

Industry Solutions

YMCA Seedbed Preparation

Two experienced operators use the Power Rake and Landscape Rake to prepare for seeding by by removing rocks, leveling ground and smoothing dirt.

Learn More

Horse Arena Transformation

This horse owner did not want to resort to using chemical weed killers on their riding arena, but the weeds had taken over and the sand has become compacted, making an unsightly mess of the riding area.

Learn More

All Industries

kr502 SPECIFICATIONS

Measurement System:
Standard

Metric

Specifications	39.55431
Info
Sales Model	KR502
Full Description	KR, KR502 Terra Rake
Product Type	Attachment
Category
Front Mount	Ventrac Mount System
3000 Series Mount
4000 Series Mount
Dimensions
Overall Height	32 in
Overall Width	49 in
Weight	250 lbs
Max Length	59 in
General
Width w/ Wings	69 in
Tine Adjustment	6 in
Angle of degree to right or left	28 deg
Min. Length	53¹⁄₂ in
Digging Depth	3 in
