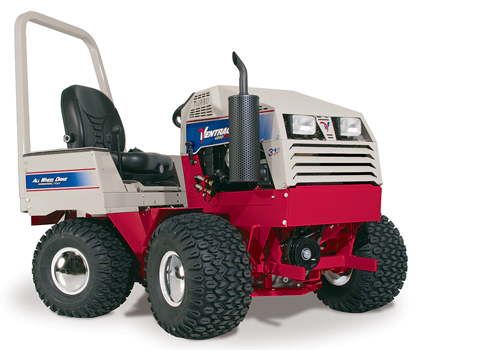

4231TD 4231TD Compact Articulating Tractor

4231TD

Product Overview

This product has been discontinued.

For maximum power, choose the popular Ventrac 4231TD powered by a 31hp Turbo Diesel, Liquid Cooled Engine. This engine is rated for up to 30° continuous operation on hillsides when equipped with the optional dual wheel kit.Choose from over 30 professional grade Ventrac Mount attachments, and get the job done in no time. This incredibly rugged and dependable machine is a wise business investment for golf courses, schools and universities, parks, street maintenance departments, commercial mowing services, contractors, wineries, farms, property owner associations, estate homes and anyone needing to: mow, blow, sweep, edge, scoop and much, much more.

MODELS

4231TD KT, 4200 VANGUARD TURBO DIESEL 39.51205

View all models in the KT4200 series.

ACCESSORY OPTIONS

70.4063-99 KT, OPT. 3 POINT HITCH FACTORY

47.0231-99 KIT, KT SUSPENSION SEAT FACTRY

70.2004-99 ROLL BAR, FOLD DN ROPS FACTORY

53.0101-99 WHEEL, ASM 21X11X8 BAR-FACTORY

53.0137-99 WHEEL, ASM 22X11X10 TURF FACTRY

RESOURCES

4231td SPECIFICATIONS

Measurement System:

Specifications 39.51205
Info
Sales Model 4231TD
Full Description KT, 4200 Vanguard Turbo Diesel
Product Type Tractor
Engine
Engine Manufacturer B&S Daihatsu
Model # Vanguard DM950DT
Horsepower 31 hp Turbo
Engine Disp. 953 cc
Num. of Cylinders 3
Cooling Liquid
Fuel Capacity 714 gal
Fuel Type Diesel
Drive System
Drive AWD All Wheel Drive
Travel Speed - Low Range 5.2 mph
Travel Speed - High Range 10 mph
Dimensions
Weight 1630 lbs
Tires
All Terrain standard 22x12-8
Turf standard 22x11-10
Bar standard 21x11-8
General
Turning Radius 43 in

Downloads

V-Plus Warranty:

Residential: 3 year*
Commercial: 2 year*
