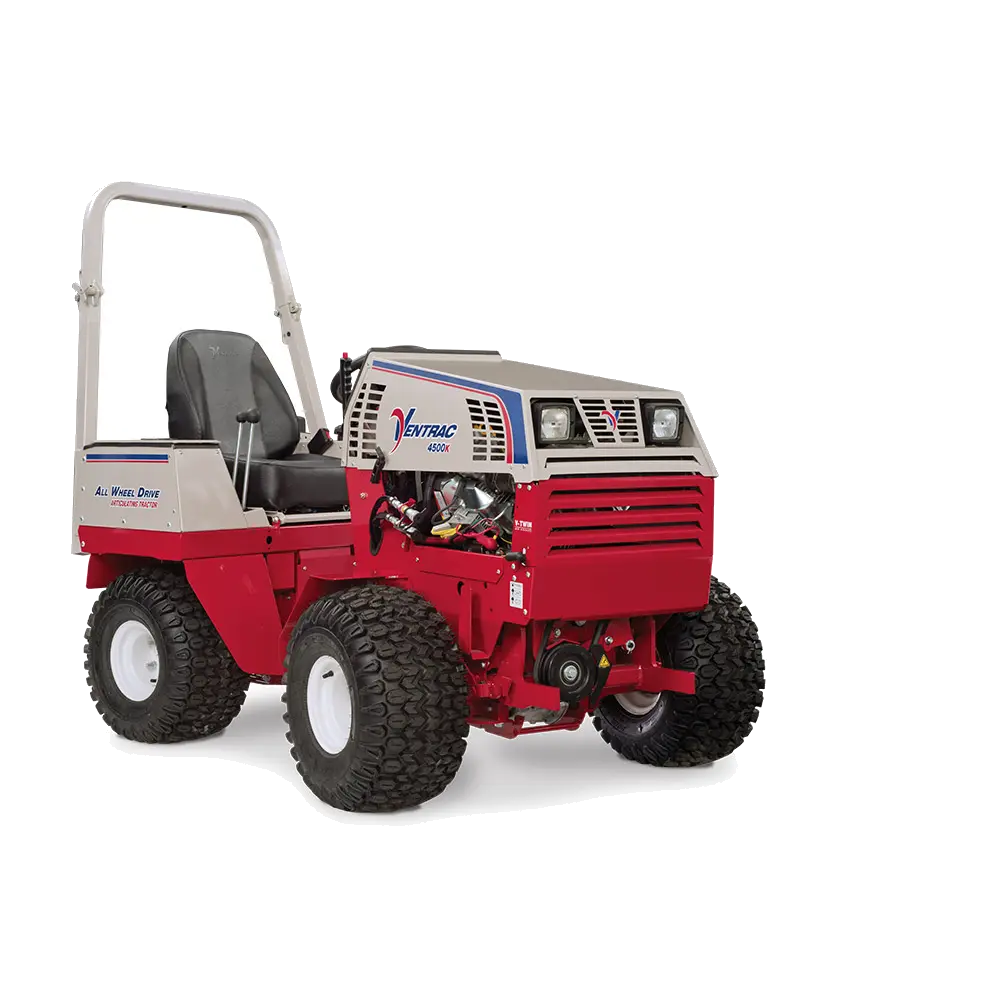

4500K Compact Tractor

4500K

Product Overview

The Ventrac 4500K was built with you in mind. From the advanced electrical system, redesigned frame, more safety and comfort features; the 4500K offers the reliable performance, astounding versatility and comfortable handling you have come to expect.

The 4500K comes equipped with a Briggs and Stratton Vanguard Model 54 engine. This 31 HP air cooled engine provides the BIG BLOCK proven industry standard in power, performance and reliability.

Like all Ventrac tractors, the 4500K utilizes All Wheel Drive traction to tackle tough terrain and power steering on an articulating and oscillating frame to maintain a light footprint and impressive agility.

Choose from over 30 professional grade Ventrac Mount attachments to transform your Ventrac into a productivity powerhouse. This incredibly rugged and dependable machine is a wise business investment for golf courses, schools and universities, parks, street maintenance departments, commercial mowing services, contractors, wineries, farms, property owner associations, estate homes and anyone needing ONE machine to do it all.

Standard Features of the Ventrac 4500K include:

  • Enclosed Muffler
  • Pre-Wired Plug and Play Wire Harness
  • Fold-Down ROPS- standard
  • Premium Comfort Seat- standard
  • Advanced Electronic Instrument Panel
  • 6 Function Warning Gauge and Alarm
  • Conveniently Located PTO Belt Tensioner
  • Onboard Diagnostic System
  • Sealed Electrical System
  • Thermostat Controlled Oil Cooler
  • Battery Disconnect Switch
  • Automotive Style Parking Brake
  • Universal PTO Switch
  • Enhanced SDLA Operator Controls

Optional Features:

  • Optional Digital Slope Gauge integrated into dash
  • Enhanced Weight Transfer Lever with Accessories Kit
  • Optional Horn
  • 3 Tire Options -Standard All Terrain Tires, or optional Turf and Bar Tires
  • Over 10 Accessory Options including a 3-Point Hitch Accessory and 3-N-1 Adapter for towing and rear attachments

View the Ventrac 4500 Overview

MODELS

4500K VANGUARD M54 39.51130

View all models in the 4500 series.

ACCESSORY OPTIONS

70.4116-99 KIT, ACC. OPT. 4500K FACTORY

70.4111-99 KIT, SUSP SEAT 4500 FACTORY

70.4100-99 KN, OPT. 3 POINT HITCH FACTORY

53.0101-99 WHEEL, ASM 21X11X8 BAR-FACTORY

53.0137-99 WHEEL, ASM 22X11X10TURF FACTRY

RESOURCES

4500k SPECIFICATIONS

Measurement System:

Specifications 39.51130
Info
Sales Model 4500K
Full Description KN, 4500K VANGUARD M54
Product Type Tractor
Engine
Engine Manufacturer B&S Vanguard
Model # Vanguard M54
Horsepower 31 hp
Peak Torque 47.4 ft-lbf
Engine Disp. 896 cc
Num. of Cylinders 2
Cooling Air
Fuel Capacity 6 gal
Fuel Type Gas
Drive System
Drive AWD All Wheel Drive
Travel Speed - Low Range 5 mph, 4 mph reverse
Travel Speed - High Range 10 mph, 8 mph reverse
Dimensions
Overall Length 8112 in standard hitch, ROPS up
Overall Width 4812 in
Height (ROPS up) 68 in
Height (ROPS down) 54 in
Weight 1340 lbs
Weight with 3Pt hitch 1436 lbs
Wheelbase 45 in
Tires
All Terrain standard 22x12-8
Turf standard 22x11-10
Bar standard 21x11-8
General
Turning Radius 39 in
Ground Clearance 5 in
Oscillation amount (@wheel) 712 in

Accessories
