The Ventrac 4500P Digital Fuel Injection model was built with you in mind. From the advanced electrical system, redesigned frame, more safety and comfort features; the 4500P offers the reliable performance, astounding versatility and comfortable handling you have come to expect.

The 4500P comes equipped with the Kawasaki FD851D engine, offering multi-port digital fuel injection (DFI) for increased fuel economy as well as choke-free operation.

Why DFI?

Fuel savings through digital fuel injection system up to 25%
Easier starting
Rated for 30 degrees continuous operation
Not affected by altitude

Like all Ventrac tractors, the 4500P utilizes All Wheel Drive traction to tackle tough terrain and power steering on the Ventrac FlexFrame to maintain a light footprint and impressive agility.

Choose from over 30 professional grade Ventrac Mount attachments to transform your Ventrac into a productivity powerhouse. This incredibly rugged and dependable machine is a wise business investment for golf courses, schools and universities, parks, street maintenance departments, commercial mowing services, contractors, wineries, farms, property owner associations, estate homes and anyone needing ONE machine to do it all.

Standard Features of the Ventrac 4500P include:

Enclosed Muffler
Enhanced Weight Transfer System
Pre-Wired Plug and Play Wire Harness
Fold-Down ROPS- standard
Premium Comfort Seat- standard
Advanced Electronic Instrument Panel
6 Function Warning Gauge and Alarm
Conveniently Located PTO Belt Tensioner
Onboard Diagnostic System
Sealed Electrical System
Thermostat Controlled Oil Cooler
Battery Disconnect Switch
Automotive Style Parking Brake
Universal PTO Switch
Enhanced SDLA Operator Controls

Optional Features:

Optional Digital Slope Gauge integrated into dash
Optional Horn
3 Tire Options -Standard All Terrain Tires, or optional Turf and Bar Tires
Over 10 Accessory Options including a 3-Point Hitch Accessory and 3-N-1 Adapter for towing and rear attachments

View the Ventrac 4500 Overview

Models Accessories

4500P KAWASAKI FD851D 39.51207
Starting at $26,090 MSRP*

*Taxes, shipping & handling, setup, freight and/or delivery charges are not included. Price shown is for informational purposes only. Consult an authorized Ventrac Dealer for complete details, pricing, warranty and safety information. All prices are shown in U.S. Dollars for products sold in the United States only.

View all models in the 4500 series.

70.4100-99 KN, OPT. 3 POINT HITCH FACTORY
70.4154-99 KIT, SUSPENSION SEAT 4500
53.0101-99 WHEEL, ASM 21X11X8 BAR-FACTORY
53.0137-99 WHEEL, ASM 22X11X10 TURF FACTRY

Enlarge Picture / Press Link · Ventrac 4500P with MC600 Mower Deck - 4500P shown equipped with the 60 inch cut, rear discharge, finish mower deck

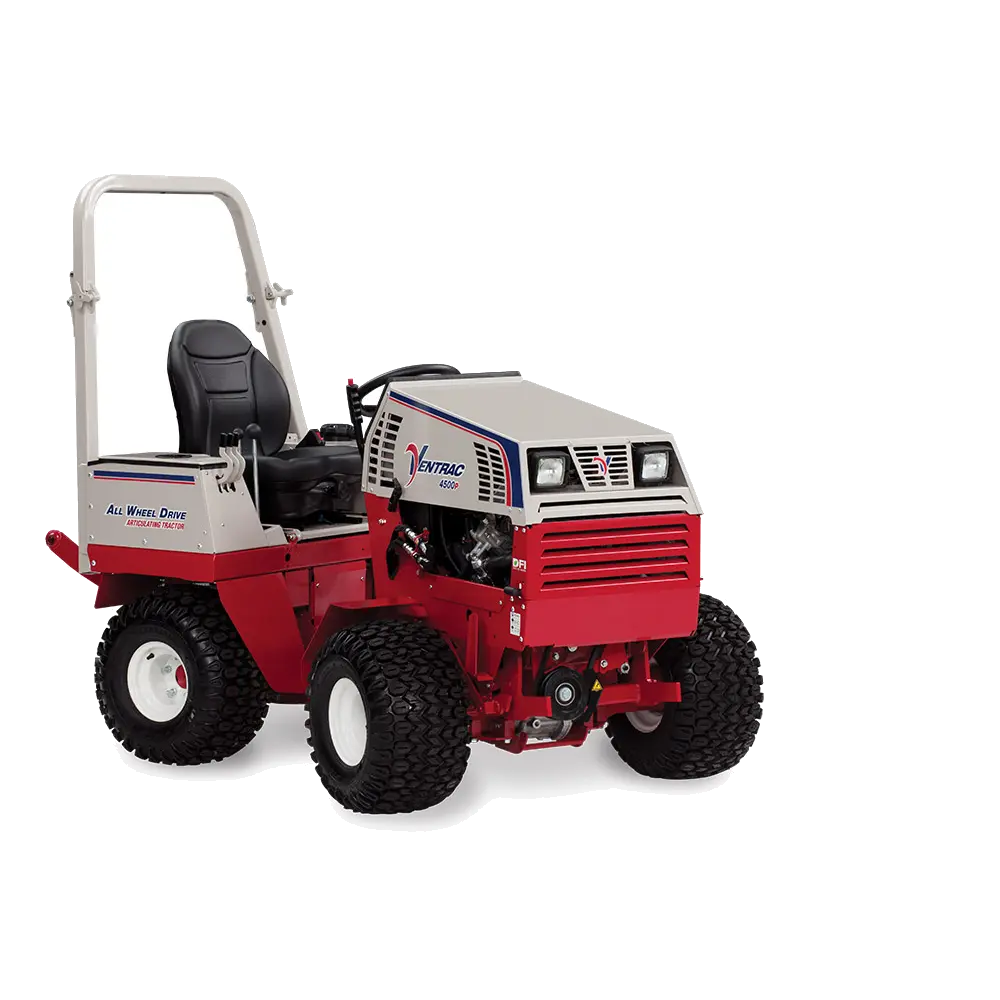

Enlarge Picture / Press Link · Ventrac 4500P All Wheel Drive Articulating Compact Utility Tractor - Side view of the 4500P shown here with optional suspension seat

Enlarge Picture / Press Link · Ventrac 4500 All Wheel Drive Articulating Tractor - 4500P shown with optional features including suspension seat, turf tires, and dual wheels

Enlarge Picture / Press Link · Ventrac 4500P with Contour Mowing Deck - 4500P pictured with the MJ840 Contour Deck with an amazing 83 inches of mowing width

Enlarge Picture / Press Link · Ventrac 4500 removing snow with Power Broom - Sidewalk and driveway snow removal is not only easier with Ventrac equipped with a Power Broom, Drop Spreader, and fully enclosed heated cab, but is also fun. Reduce the risk of Slip & Fall lawsuits at Hospitals, Schools, Municipalities, and other sites with the Ventrac Power Broom and salt spreader.

Enlarge Picture / Press Link · Ventrac 4500P with Turbine Blower - Golf course maintenance made easy with the Ventrac 4500, shown with optional dual wheels, and Turbine Blower.

Enlarge Picture / Press Link · Ventrac 4500P with Dual Wheels Slope Mowing with MJ740 - The Ventrac 4500P with optional dual wheels can operate continuously on slopes of 30 degrees even while using the precise cut of the Reel Mower.

Enlarge Picture / Press Link · Ventrac 4500P with Contour Mower - The Ventrac 4500 is the perfect solution for golf courses with all-wheel drive, exceptional slope performance and the Contour Mower.

Enlarge Picture / Press Link · Ventrac 4500P on Golf Course with Contour Mower - Optional dual turf tires adds maximum traction with minimum turf damage.

Enlarge Picture / Press Link · Ventrac 4500P Rolls Along with the MJ480 - Smooth hydrostatic drive and greater articulated steering control makes the Ventrac maneuverable and comfortable for whatever your task may be.

Enlarge Picture / Press Link · Ventrac 4500 Mowing and Vacuuming at Once - With the RV602 Vacuum System you can mow grass and clear the turf of clippings and leaves at the same time.

Enlarge Picture / Press Link · Ventrac 4500P mowing with Contour Mower - Optional dual turf tires adds maximum traction with minimum turf damage.

Enlarge Picture / Press Link · Ventrac 4500P with Slip Scoop - Slip Scoop HE 480/Power Bucket HE482

Enlarge Picture / Press Link · Ventrac 4500P Mowing fields with the Tough Cut - The Ventrac 4500 pictured with optional dual wheels mows an overgrown field with the Tough Cut mower deck.

Enlarge Picture / Press Link · Two Ventrac 4500s hard at work - Foreground a 4500P uses the Power Rake while the 4500 in the back mows with the Tough Cut

Enlarge Picture / Press Link · Ventrac 4500s play in the dirt - Front 4500 using the Power Rake and rear 4500 using Landscape Rake

Enlarge Picture / Press Link · Ventrac 4500P Engine Compartment - The 4500P is powered by the 31 HP Kawasaki FD851D DFI Gas Engine

Enlarge Picture / Press Link · Closeup Engine 4500P - The Ventrac 4500P has a fully insulated muffler

Enlarge Picture / Press Link · Ventrac 4500P with Trencher - The terminator/cup combo chain offers carbide cutting tips for excellent cutting performance in a variety soil conditions.

Enlarge Picture / Press Link · Ventrac 4500P with Dual Turf Tires - Shown with optional dual tire kit using turf tires and optional suspension seat.

Enlarge Picture / Press Link · Ventrac 4500 Maintaining Property with RV602 - The Vacuum System works with the powerful Ventrac mowing deck to pick up even layers of leaves that may have been trampled and flattened.

Enlarge Picture / Press Link · Ventrac 4500P and HQ680 Mower Deck - The Ventrac 4500 and Tough Cut mower can do with one person what a team of people with weed eaters would be needed to do.

Enlarge Picture / Press Link · Ventrac 4500P Downhill Mowing with Tough Cut - The stability and control of the Ventrac 4500 helps give you a more complete cut on slopes even going downhill.

Enlarge Picture / Press Link · Ventrac 4500 moving Log Splitter with Trailer Mover - A pickup would simply not be able to do this but the Ventrac 4500 with the Trailer Mover can.

Industry Solutions

All Industries

4500p SPECIFICATIONS

Measurement System:
Standard

Metric

Specifications	39.51207
Info
Sales Model	4500P
Full Description	KN, 4500P Kawasaki FD851D
Product Type	Tractor
Engine
Engine Manufacturer	Kawasaki
Model #	FD851D DFI
Horsepower	31 hp
Peak Torque	47.1 ft-lbf
Engine Disp.	824 cc
Num. of Cylinders	2
Cooling	Liquid
Fuel Capacity	6 gal
Fuel Type	Gas
Drive System
Drive	AWD All Wheel Drive
Travel Speed - Low Range	5 mph, 4 mph reverse
Travel Speed - High Range	10 mph, 8 mph reverse
Dimensions
Overall Length	81¹⁄₂ in standard hitch, ROPS up
Height (ROPS up)	68 in
Overall Width	48¹⁄₂ in
Height (ROPS down)	54 in
Weight with 3Pt hitch	1670 lbs
Wheelbase	45 in
Weight	1575 lbs
Tires
All Terrain	22x12-8
Turf	22x11-10
Bar	21x11-8
General
Turning Radius	39 in
Ground Clearance	5 in
Oscillation amount (@wheel)	7¹⁄₂ in
