Product Overview

Why Diesel? 4500Y

Fuel Savings
High power efficiencies
Lower carbon monoxide outputs compared to gasoline
Heavy cast iron, 3-cylinder engine
Tier 4 compliant

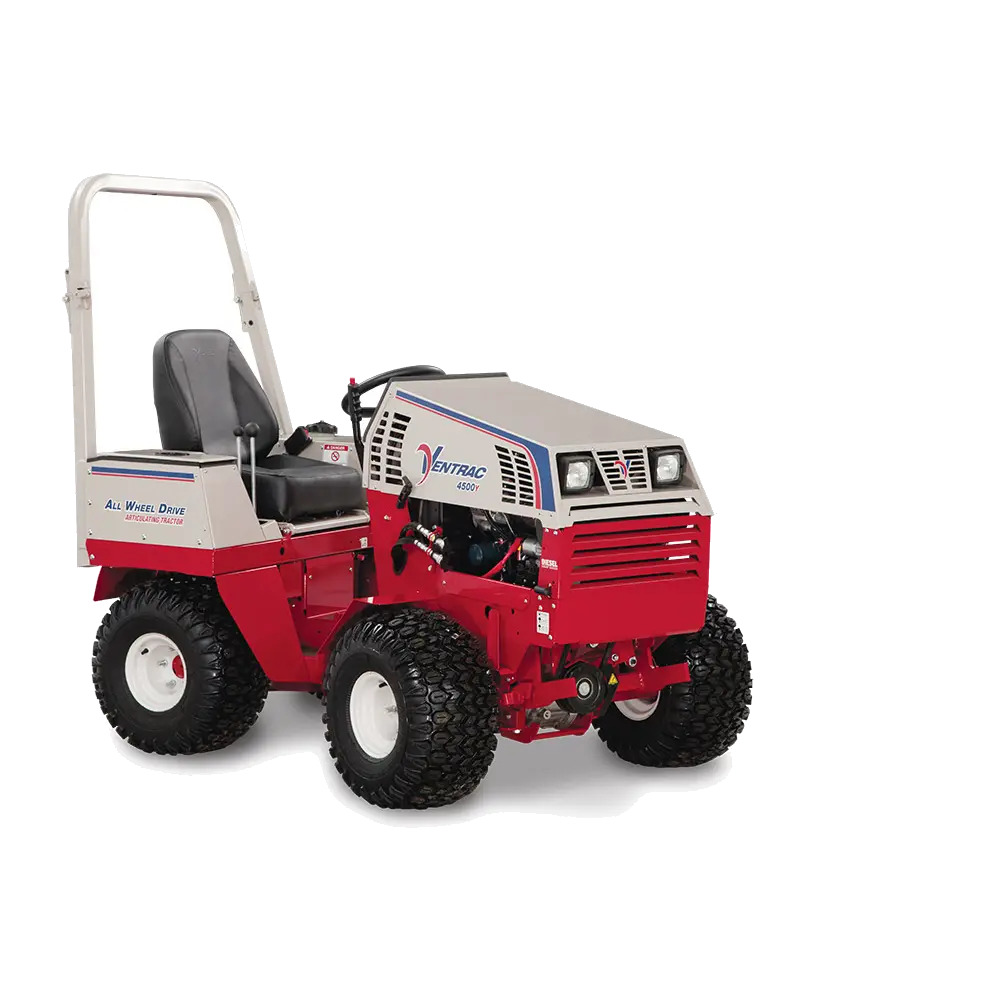

The Ventrac 4500Y is powered by a 25 HP Kubota engine, model D902, and is geared for high torque and maximum diesel performance. Like all Ventrac tractors, the 4500Y utilizes All Wheel Drive traction to tackle tough terrain and power steering on an articulating and oscillating frame to maintain a light footprint and impressive agility.
Choose from over 30 professional grade Ventrac Mount attachments to transform your Ventrac into a productivity powerhouse. This incredibly rugged and dependable machine is a wise business investment for golf courses, schools and universities, parks, street maintenance departments, commercial mowing services, contractors, wineries, farms, property owner associations, estate homes and anyone needing ONE machine to do it all.

Standard Features of the Ventrac 4500Y include:

Enclosed Muffler
Enhanced Weight Transfer System
Pre-Wired Plug and Play Wire Harness
Fold-Down ROPS- standard
Premium Comfort Seat- standard
Advanced Electronic Instrument Panel
6 Function Warning Gauge and Alarm
Conveniently Located PTO Belt Tensioner
Onboard Diagnostic System
Sealed Electrical System
Thermostat Controlled Oil Cooler
Battery Disconnect Switch
Automotive Style Parking Brake
Universal PTO Switch
Enhanced SDLA Operator Controls

Optional Features:

Optional Digital Slope Gauge integrated into dash
Optional Horn
3 Tire Options -Standard All Terrain Tires, or optional Turf and Bar Tires
Over 10 Accessory Options including a 3-Point Hitch Accessory and 3-N-1 Adapter for towing and rear attachments

View the Ventrac 4500 Overview

MODELS

4500Y KUBOTA D902 39.51209

View all models in the 4500 series.

ACCESSORY OPTIONS

70.4111-99 KIT, SUSP SEAT 4500 FACTORY

70.4100-99 KN, OPT. 3 POINT HITCH FACTORY

53.0101-99 WHEEL, ASM 21X11X8 BAR-FACTORY

53.0137-99 WHEEL, ASM 22X11X10TURF FACTRY

RESOURCES

Learn all the benefits of the 4500

Compare all the 4500 models to find which one is best for you.
New Ventrac 4500 Introduction

Watch extended interview with Ryan Steiner, Director of Engineering.
Basic Operations for a Ventrac 4500 Tractor

Overview of the basic operation for a Ventrac 4500 Tractor. Always read and understand Operator's Manual before operating a Ventrac tractor.

4500y SPECIFICATIONS

Measurement System:
Standard

Metric

Specifications	39.51209
Info
Sales Model	4500Y
Full Description	KN, 4500Y KUBOTA D902
Product Type	Tractor
Engine
Engine Manufacturer	Kubota
Model #	D902
Horsepower	25 hp
Peak Torque	42 ft-lbf
Engine Disp.	898 cc
Num. of Cylinders	3
Cooling	Liquid
Fuel Capacity	6 gal
Fuel Type	Diesel
Drive System
Drive	AWD All Wheel Drive
Travel Speed - Low Range	5 mph, 4 mph reverse
Travel Speed - High Range	10 mph, 8 mph reverse
Dimensions
Overall Length	81¹⁄₂ in standard hitch, ROPS up
Overall Width	48¹⁄₂ in
Height (ROPS up)	68 in
Height (ROPS down)	54 in
Weight	1655 lbs
Weight with 3Pt hitch	1750 lbs
Wheelbase	45 in
Tires
All Terrain	22x12-8
Turf	22x11-10
Bar	21x11-8
General
Turning Radius	39 in
Ground Clearance	5 in
Oscillation amount (@wheel)	7¹⁄₂ in

Downloads

Specifications Sheet
Size: 3.36 MB

V-Plus Warranty:

* Warranty Info

Residential: 3 year*

Commercial: 2 year*
