This product has been discontinued.

See our new KJ520 Narrow Broom

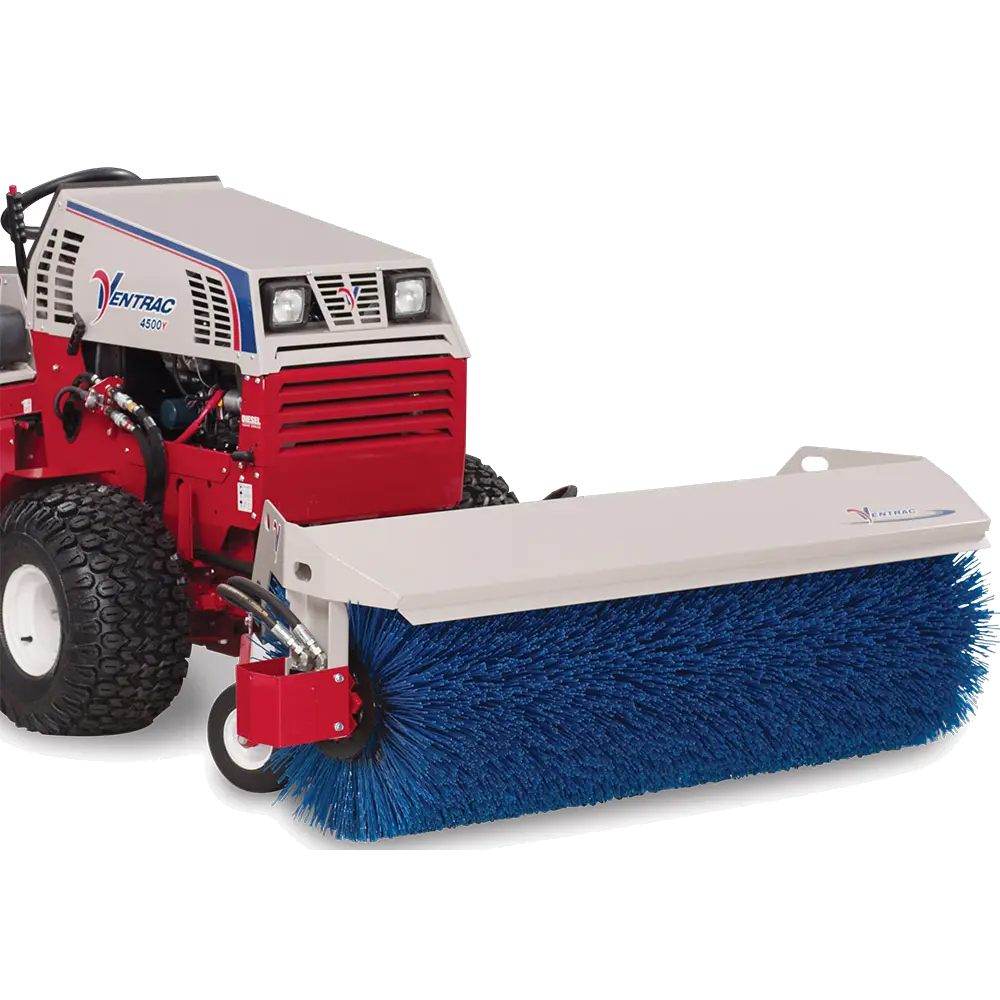

The HB580 Power Broom is designed for sweeping and removal of material such as snow, leaves, dirt, light gravel, and even thatch. A corner-less frame design permits sweeping against curbs and allows for the cleaning of corners.

The HB580 Broom can be hydraulically angled left or right and lifted up or down all with the S.D.L.A. Controls.

An optional electric actuator allows the operator to adjust the speed and direction of the broom rotation, maximizing effectiveness and allowing the operator to reverse broom rotation, all from the seat of the tractor.

The broom stands alone when detached and can be easily reattached. A self-leveling feature keeps the broom horizontal at all times, and the nylon bristle broom cores can be changed in just a few minutes.

Models Accessories

HB580 POWER BROOM 39.55400

70.8025 KIT, 12V ACTUATOR, HB/KX/LX
70.4161 KIT, 12V FRONT 4520

Enlarge Picture / Press Link · Ventrac 4500 with Winter Accessories - Ventrac 4500 shown with Power Broom, fully enclosed heated cab, and drop spreader.

Enlarge Picture / Press Link · Ventrac 4500 removing snow with Power Broom - Sidewalk and driveway snow removal is not only easier with Ventrac equipped with a Power Broom, Drop Spreader, and fully enclosed heated cab, but is also fun. Reduce the risk of Slip & Fall lawsuits at Hospitals, Schools, Municipalities, and other sites with the Ventrac Power Broom and salt spreader.

Enlarge Picture / Press Link · Ventrac 4500Y with Power Broom - Shown here with optional LED mounted lights and safety strobe light

Enlarge Picture / Press Link · Ventrac 4500Z compact utility tractor - 4500Z shown here with optional propane kit, fully enclosed heated cab, power broom, and broadcast spreader.

Enlarge Picture / Press Link · Ventrac 4500Z with Winter Ready Setup - Featuring the HB580 Broom, SA250 Salt Spreader, and the KW450 Cab.

Enlarge Picture / Press Link · Ventrac 4500Y diesel compact utility tractor with Power Broom - The power broom cleans up mulch spills and overflows fast.

Enlarge Picture / Press Link · Ventrac 4500Z with Power Broom - Keep sidewalks and pathways clear year-round with the power broom.

Enlarge Picture / Press Link · Ventrac 4500Y articulating tractor with Power Broom - Quickly move small debris such as mulch or small stones with the power broom

Enlarge Picture / Press Link · Ventrac 4500Y diesel with Power Broom - The 4500 with power broom works great with more than just snow removal

Enlarge Picture / Press Link · Ventrac 4500Y AWD tractor with Power Broom - The power broom efficiently clears debris leaving behind a clean and smooth surface area.

Enlarge Picture / Press Link · Ventrac 4500Z tractor with Power Broom - The power broom makes cleaning large surface areas like parking lots simple and saves time.

Enlarge Picture / Press Link · Ventrac 4500 Clearing Snow - Operators can stay warm and dry while battling winter thanks to an enclosed heated cab.

Enlarge Picture / Press Link · Ventrac 4500Z using Power Broom for Snow - The Power Broom gets right down to the pavement level in a way that blades cannot for a more complete snow removal.

Enlarge Picture / Press Link · Ventrac 4500 Blasts Snow Away with Power Broom - Able to rotate in either direction, the Power Broom can also be angled either way for maximum effectiveness.

Enlarge Picture / Press Link · Ventrac 4500Z with Power Broom in Doorway - The Power Broom is capable of clearing areas that blades cannot go or are just not as effective like entryways to buildings.

Enlarge Picture / Press Link · Ventrac 4500 Cleaning Yard with Power Broom - The Power Broom can be used for a variety of different materials from snow to mulch.

Enlarge Picture / Press Link · Ventrac 4500Z using Power Broom for Lawn Cleanup - Help fill in ditches easier with the Power Broom for more complete material replacement than a blade.

Enlarge Picture / Press Link · Ventrac 4500 with Dual Wheels and Power Broom - Clearing paths on a Macadamia Farm in Australia.

Enlarge Picture / Press Link · Ventrac 4500 with Power Broom and Dual Wheels - Moving debris quickly and efficiently on a Macadamia Farm in Australia.

Enlarge Picture / Press Link · Ventrac 4500 fitted with Dual Wheels using Power Broom - Faster and easier than using a blade, the 4500 with Power Broom clears the way on a Macadamia Farm in Australia.

Enlarge Picture / Press Link · Ventrac 4500 in Australia using Power Broom - Seen here on a Macadamia Farm in Australia, the Ventrac 4500 with Power Broom makes fast work out of clearing paths and driveways.

Ventrac Benefits

Better Visibility

Front-mounted attachments let operators see the work out front. This forward thinking design allows for better visibility so operators can work more confidently when close to landscaping, buildings or other objects.

Clean Sweep

The Power Broom is an efficient solution for light to medium snowfalls. Quickly clear a path through snow leaving a clean surface.

Reverse Broom Rotation

The optional electric actuator allows the operator to adjust the speed and direction of the broom rotation, maximizing effectiveness and allowing the operator to reverse broom rotation, all from the seat of the tractor.

Ventrac Mount System

With a little practice, you can switch almost any attachment within a minute, without any tools or heavy lifting.

Industry Solutions

Walking Paths on a College Campus

One of the biggest challenges that the property manager for a education facility will face throughout the year is keeping snow and ice clear of walking paths.

Learn More

Top Snow Contractors Discuss Sidewalk Management

Professional snow contractors are finding that Ventrac is an effective and affordable sidewalk snow removal.

Learn More

Snow Management Solution

Landscape Industry Consultant, Phil Harwood, describes why Ventrac is an ideal power unit for Landscape Contractors looking to manage sidewalk snow.

Learn More

The NEW Standard in Sidewalk Snow

Browse Ventrac's list of snow removal products ready to tackle light to heavy snow.

Learn More

Ventrac Superb for Ice Rink Perfection at Canada Hockey Championships

Ventrac equipment help clear a frozen pond for the Canadian National Pond Hockey Championships in Ontario, Canada.

Learn More

Operations Overview for the HB580 Broom

There is nothing more rewarding than quickly clearing a path and leaving a clean surface. The Ventrac HB580 Power Broom allows you to do this in a breeze. Designed to remove snow, leaves, dirt, light gravel, and even thatch, the Power Broom makes your day anything but hard work.

Learn More

Striping at the Baseball Hall of Fame

Doubleday Field in the village of Cooperstown, NY is the birthplace of baseball. A ballpark with such a reputation requires a certain caliber of equipment to keep it looking immaculate from game to game. A typical season runs from mid-April to mid-October with up to 324 played baseball games per year.

Learn More

All Industries

hb580 SPECIFICATIONS

Measurement System:
Standard

Metric

Specifications	39.55400
Info
Sales Model	HB580
Full Description	HB, HB580 Power Broom
Product Type	Attachment
Category
Front Mount	Ventrac Mount System
4000 Series Mount
Dimensions
Working Width	58 in
Length	53 in
Overall Height	24 in
Overall Width	68 in
Weight	382 lbs
Shipping Dimensions(LWH)	71x57x30 in
Crated Weight	532 lbs
General
Work Width	58 in
Broom Diameter	21 in
Rotation	Forward/Reverse* (* with optional actuator)
Broom Speed	220 RPM @ 3200 engine RPM

Downloads

Specifications Sheet
Size: 1.06 MB

V-Plus Warranty:

* Warranty Info

Commercial: 2 year*

Accessories
