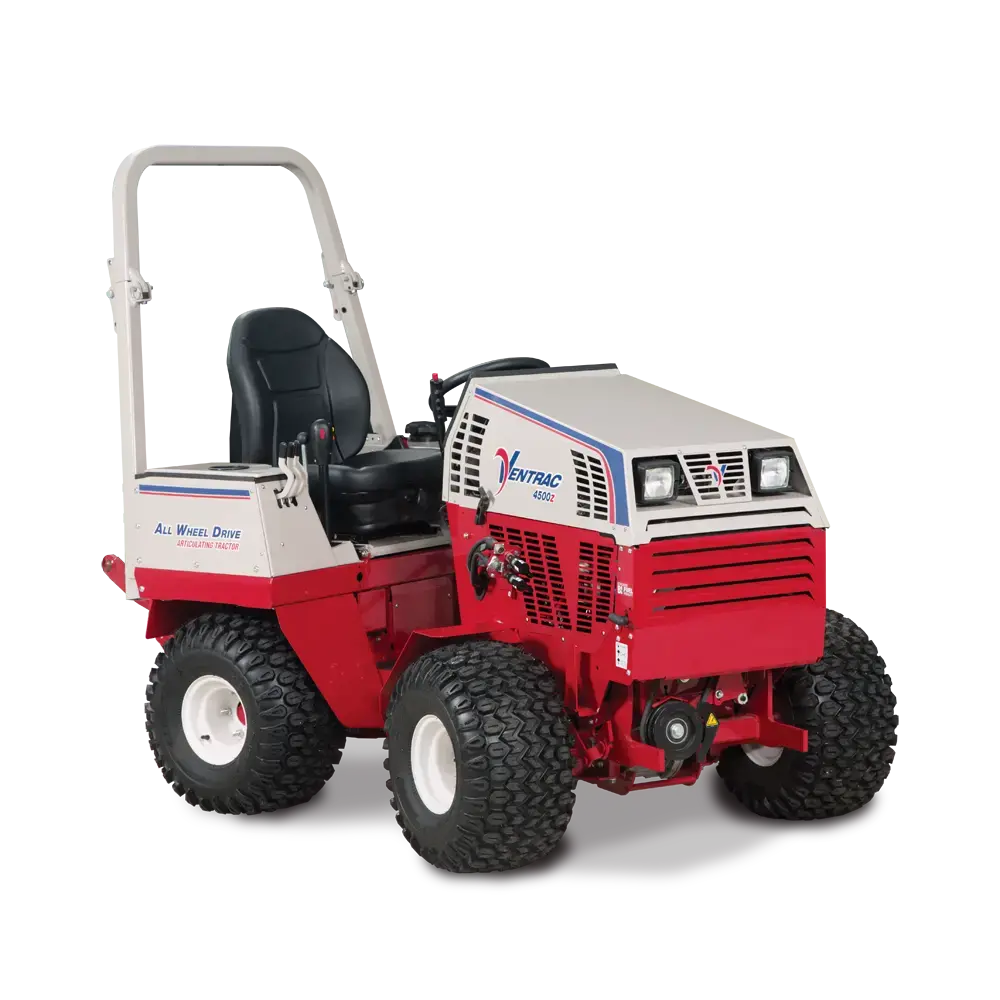

WHAT MAKES THE VENTRAC 4500
One Tough Tractor?

It only takes one test drive on this incredibly agile, yet power-packed tractor and you'll know that the Ventrac 4500 is in a class of its own. An innovative design combines all-wheel drive, an articulating frame, and powerful engines to give you unmatched stability and control to get work done. Most importantly, the Ventrac 4500 is designed to be the most fun you'll ever have on a tractor.

Find Out Why Below

4500 Models

Model	Engine	HP	Cooling	Fuel Type	Cylinders #	Engine Disp.	Weight
4500K	B&S Vanguard	31HP	Air	Gas	2-cyl	896cc	1340 lbs*
4500P	Kawasaki	31HP	Liquid	Gas	2-cyl	824cc	1575 lbs
4500Y	Kubota	25HP	Liquid	Diesel	3-cyl	898cc	1655 lbs
4500Z	Kubota	32.5HP	Liquid	Gas (Propane Ready)	3-cyl	962cc	1655 lbs

* Does not include optional rear weights & weight transfer which is standard on 4500 Liquid Cooled tractors

Tractor Slope Ratings

Ventrac tractors offer you tested and approved slope operation ratings for safer slope mowing.

4500 with Dual Wheels
4500 with Wheel Extensions
4500 Standard Wheels

4500 Tractor Standard Features

PRODUCT BENEFITS

Increased Safety On Slopes

The unique design qualities of Ventrac has made a world renowned statement for its ability to work on steep slopes. For more details, visit our slope page.
Articulating Frame

The tractor frame pivots in the center, allowing the rear tires to follow the same path as the front tires. This allows the tractor to easily navigate around obstacles and without damage to the turf.
Ventrac Mount System

With a little practice, you can switch almost any attachment within a minute, without any tools or heavy lifting.
Extreme Snow Performance

Built to handle all snow conditions, from light snowfalls to winter's wrath. Ventrac gives you a peace of mind for easily clearing snow.
Effortless Controls

Learning to drive a Ventrac is simple and intuitive with the patented S.D.L.A. Controls.
All-Wheel Drive

Full-time, all-wheel hydrostatic drive delivers maximum performance and traction to help you get the job done.
Reliable Power

Ventrac isn't a big-box store throw-away tractor. These tractors are built for industrial use with commercial engines, and heavy duty transaxles for reliable performance year after year.
Effortless Steering

A hydraulically powered steering system provides responsive and effortless steering control.
Better Visibility

Front-mounted attachments let operators see the work out front. This forward thinking design allows for better visibility so operators can work more confidently when close to landscaping, buildings or other objects.
Versatility - Light Footprint

The Ventrac 4500 tractor utilizes large flotation tires on an articulating and oscillating frame to maintain a light footprint and impressive agility. This greatly reduces turf disturbance.
Oscillating Frame

The front and rear frame of the tractor oscillate independently of each other. This allows the tractor to adapt to rough terrain while giving all four tires more consistent contact with the ground.
Traction Control

Ventrac's innovative weight transfer system improves traction, braking, and side-slope steering security by shifting a portion of the front attachment weight onto the tractor.

RESOURCES

The Best Steep Slope Mower - Ventrac

Ventrac is the best four wheel drive, compact tractor for mowing on slopes. With an articulating & oscillating frame, low center of gravity, traction control, and dual wheels, this tractor can conquer grass mountains. Proudly made in America. Test drive one at your local dealer today.
Clearing Brush and Thorn Bushes

Outdoorsman and avid hunter, Les Jones, controls invasive brush and briar growth with the Ventrac Tough Cut mower.
Top Snow Contractors Discuss Sidewalk Management

Professional snow contractors are finding that Ventrac is an effective and affordable sidewalk snow removal.
Take Back Your Weekends with Ventrac

Joan Miller was tired of spending her entire weekends trying to maintain nearly thirty acres of rough, hilly terrain and thick wooded areas. So she turned to The One Tractor Solution to help get the job done faster and easier than ever. Ventrac made it possible to reclaim her valuable weekend time.
Keeping NC State University Beautiful

From season to season, NC State University Grounds Supervisor, Mark Tennant and his crew, have experienced the benefits of Ventrac's versatility. The grounds crew of NC State prides themselves in the work they do to keep the campus in pristine condition. Check out the newest video to see how their Ventrac fleet is a critical piece in making this elite campus beautiful year round.
Ventrac Versatility

This feature shows all the Ventrac attachments in action.
Basic Operations for a Ventrac 4500 Tractor

Overview of the basic operation for a Ventrac 4500 Tractor. Always read and understand Operator's Manual before operating a Ventrac tractor.
Customer satisfaction is our primary objective at Ventrac
Extreme Work in Slow Motion

The Ventrac Tough Cut mowing deck takes on tall grass and thick weeds

4500 SPECIFICATIONS

Measurement System:
Standard

Metric

Specifications	39.51130	39.51207	39.51208	39.51209
Info
Sales Model	4500K	4500P	4500Z	4500Y
Full Description	KN, 4500K Vanguard M54	KN, 4500P Kawasaki FD851D	KN, 4500Z Kubota WG972-GL	KN, 4500Y Kubota D902
Product Type	Tractor	Tractor	Tractor	Tractor
Engine
Engine Manufacturer	B&S Vanguard	Kawasaki	Kubota	Kubota
Model #	Vanguard M54	FD851D DFI	WG972-GL	D902
Horsepower	31 hp	31 hp	32¹⁄₂ hp	25 hp
Peak Torque	47.4 ft-lbf	47.1 ft-lbf	50.6 ft-lbf	42 ft-lbf
Engine Disp.	896 cc	824 cc	962 cc	898 cc
Num. of Cylinders	2	2	3	3
Cooling	Air	Liquid	Liquid	Liquid
Fuel Capacity	6 gal	6 gal	6 gal	6 gal
Fuel Type	Gas	Gas	Gas (Propane if equipped)	Diesel
Drive System
Drive	AWD All Wheel Drive	AWD All Wheel Drive	AWD All Wheel Drive	AWD All Wheel Drive
Travel Speed - Low Range	5 mph, 4 mph reverse	5 mph, 4 mph reverse	5 mph, 4 mph reverse	5 mph, 4 mph reverse
Travel Speed - High Range	10 mph, 8 mph reverse	10 mph, 8 mph reverse	10 mph, 8 mph reverse	10 mph, 8 mph reverse
Dimensions
Overall Length	81¹⁄₂ in standard hitch, ROPS up	81¹⁄₂ in standard hitch, ROPS up	81¹⁄₂ in standard hitch, ROPS up	81¹⁄₂ in standard hitch, ROPS up
Overall Width	48¹⁄₂ in	48¹⁄₂ in	48¹⁄₂ in	48¹⁄₂ in
Height (ROPS up)	68 in	68 in	68 in	68 in
Height (ROPS down)	54 in	54 in	54 in	54 in
Weight	1340 lbs	1575 lbs	1655 lbs	1655 lbs
Weight with 3Pt hitch	1436 lbs	1670 lbs	1750 lbs	1750 lbs
Wheelbase	45 in	45 in	45 in	45 in
Tires
All Terrain	22x12-8	22x12-8	22x12-8	22x12-8
Turf	22x11-10	22x11-10	22x11-10	22x11-10
Bar	21x11-8	21x11-8	21x11-8	21x11-8
General
Turning Radius	39 in	39 in	39 in	39 in
Ground Clearance	5 in	5 in	5 in	5 in
Oscillation amount (@wheel)	7¹⁄₂ in	7¹⁄₂ in	7¹⁄₂ in	7¹⁄₂ in

Downloads

Specifications Sheet
Size: 3.36 MB

V-Plus Warranty:

* Warranty Info

Commercial: 2 year*

Product Comparison Page
