The Ventrac 4500Z is powered by a 32.5 HP Kubota engine, model WG972-GL. This powerful and robust engine sports the highest peak torque value in our lineup.

Like all Ventrac tractors, the 4500Z utilizes All Wheel Drive traction to tackle tough terrain and power steering on the Ventrac FlexFrame to maintain a light footprint and impressive agility.
Choose from over 30 professional grade Ventrac Mount attachments to transform your Ventrac into a productivity powerhouse. This incredibly rugged and dependable machine is a wise business investment for golf courses, schools and universities, parks, street maintenance departments, commercial mowing services, contractors, wineries, farms, property owner associations, estate homes and anyone needing ONE machine to do it all.

Standard Features of the Ventrac 4500Z include:

Enclosed Muffler
Enhanced Weight Transfer System
Pre-Wired Plug and Play Wire Harness
Fold-Down ROPS- standard
Premium Comfort Seat- standard
Advanced Electronic Instrument Panel
6 Function Warning Gauge and Alarm
Conveniently Located PTO Belt Tensioner
Onboard Diagnostic System
Sealed Electrical System
Thermostat Controlled Oil Cooler
Battery Disconnect Switch
Automotive Style Parking Brake
Universal PTO Switch
Enhanced SDLA Operator Controls

Optional Features:

Optional Digital Slope Gauge integrated into dash
Optional Horn
3 Tire Options -Standard All Terrain Tires, or optional Turf and Bar Tires
Over 10 Accessory Options including a 3-Point Hitch Accessory and 3-N-1 Adapter for towing and rear attachments

View the Ventrac 4500 Overview

Models Accessories

4500Z KUBOTA WG972-GL 39.51208
Starting at $27,265 MSRP*

*Taxes, shipping & handling, setup, freight and/or delivery charges are not included. Price shown is for informational purposes only. Consult an authorized Ventrac Dealer for complete details, pricing, warranty and safety information. All prices are shown in U.S. Dollars for products sold in the United States only.

View all models in the 4500 series.

70.4100-99 KN, OPT. 3 POINT HITCH FACTORY
70.4154-99 KIT, SUSPENSION SEAT 4500
53.0101-99 WHEEL, ASM 21X11X8 BAR-FACTORY
53.0137-99 WHEEL, ASM 22X11X10 TURF FACTRY

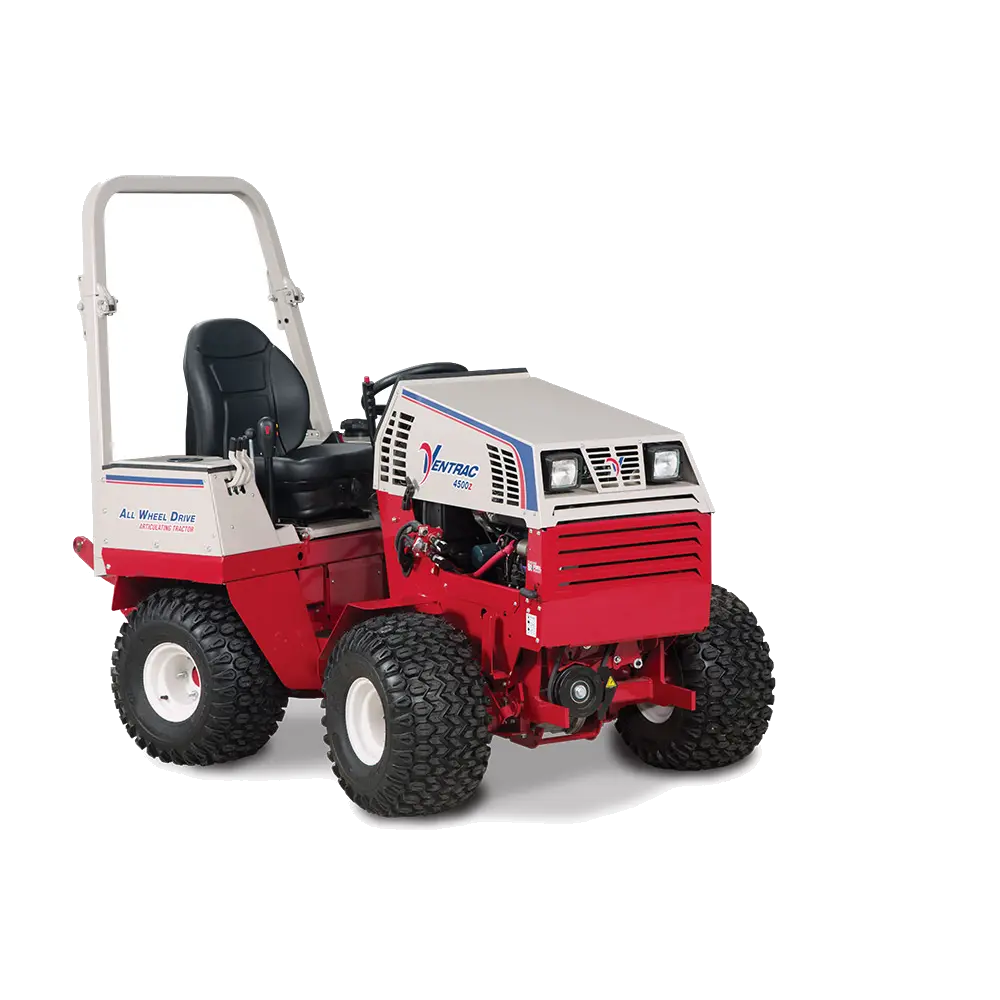

Enlarge Picture / Press Link · Ventrac 4500Z AWD articulating compact utility tractor right side - Shown with optional suspension seat

Enlarge Picture / Press Link · Ventrac 4500Z AWD articulating compact utility tractor left side - Shown with optional suspension seat

Enlarge Picture / Press Link · Ventrac 4500Z with Kubota gas engine - The 4500Z comes with the Kubota 32 HP liquid cooled gasoline engine capable of burning propane as well.

Enlarge Picture / Press Link · Ventrac 4500Z with Complete Winter Setup - The 4500Z is pictured here with 72 inch dozer blade, fully enclosed cab, and broadcast spreader.

Enlarge Picture / Press Link · Ventrac 4500 with Winter Accessories - Ventrac 4500 shown with Power Broom, fully enclosed heated cab, and drop spreader.

Enlarge Picture / Press Link · Ventrac 4500Z tractor equipped to battle winter weather - 4500Z shown here with optional propane kit, fully enclosed heated cab, power broom, and broadcast spreader.

Enlarge Picture / Press Link · Ventrac 4500Z Snow Setup with Snowblower - Winter hands you its worst. You answer with the Ventrac 4500 with snow package including the powerful KX523 Snowblower.

Enlarge Picture / Press Link · Ventrac 4500Z with Snow Package right side - Shown here with V-Blade, Fully enclosed cab, and Broadcast Spreader.

Enlarge Picture / Press Link · Ventrac 4500Z with Snow Package left side - Shown here with V-Blade, Fully enclosed cab, and Broadcast Spreader.

Enlarge Picture / Press Link · Ventrac 4500Z Precision Mowing with Reel Mower - Confidently mow around waterways and other obstacles with the all-wheel drive, center articulating 4500 while the Reel Mower leaves behind nothing but beautiful lawn.

Enlarge Picture / Press Link · Ventrac 4500Z with 72 inch mowing deck - The 4500 and the 72 inch mowing deck are both designed to give you great looking results even on hills and slopes.

Enlarge Picture / Press Link · Ventrac 4500Z with the Aera-Vator - The Aero-Vator, shown here with optional seeder mounted on top, aerates without tearing up the turf.

Enlarge Picture / Press Link · Ventrac 4500Z with Power Blower - Directional forced air of up to 180 MPH the power blower can move mountains of leaves with ease.

Enlarge Picture / Press Link · Ventrac 4500Z articulating tractor with Power Broom - The Power Broom makes light work of snow removal

Enlarge Picture / Press Link · Ventrac 4500Z compact utility tractor - 4500Z shown here with optional propane kit, fully enclosed heated cab, power broom, and broadcast spreader.

Enlarge Picture / Press Link · Ventrac 4500Z AWD tractor - All wheel drive maximizes traction for safe and stable operation in all kinds of weather conditions.

Enlarge Picture / Press Link · Ventrac 4500 downhill mowing with Tough Cut (zoom in) - Tall and unruly weeds can be a chore on hills and slopes without the stability and effectiveness of the Ventrac 4500 and Tough Cut deck.

Enlarge Picture / Press Link · Ventrac 4500Z AWD tractor with Aero-Vator - Aerate lawns without damaging the turf even on hills and slopes.

Enlarge Picture / Press Link · Ventrac 4500 with MJ740 Reel Mower Finish Decks - Shown here with optional 3-point kit installed.

Enlarge Picture / Press Link · Ventrac 4500 using Trencher - The terminator/cup combo chain offers carbide cutting tips for excellent cutting performance in a variety soil conditions. Digging teeth bolt onto the chain for easy replacement.

Enlarge Picture / Press Link · Ventrac 4500 with Snowblower - Snow over two feet deep is no match for the Ventrac Snowblower.

Enlarge Picture / Press Link · Ventrac 4500Z articulating tractor with Edger - The 20 inch edger is shown with optional blower.

Enlarge Picture / Press Link · Ventrac 4500 with KX523 Snowblower - The Ventrac Snowblower can send snow up to 40 feet away from you for ultimate clearing capabilities.

Enlarge Picture / Press Link · Ventrac 4500Z with Power Broom - Keep sidewalks and pathways clear year-round with the power broom.

Enlarge Picture / Press Link · Ventrac 4500Z compact utility tractor with Aero-Vator - The Aero-Vator works with uneven turf and doesn't tear up lawns in the process.

Enlarge Picture / Press Link · Ventrac 4500Z tractor with Power Broom - The power broom makes cleaning large surface areas like parking lots simple and saves time.

Enlarge Picture / Press Link · Ventrac 4500Z with Power Blower - The power blower moves leaves along at up to 180 MPH making fall yard work more like fun and less like work.

Enlarge Picture / Press Link · Ventrac 4500Z Propane with Winter Package - The 4500Z with optional Propane kit battles the winter elements the way that only Ventrac does.

Enlarge Picture / Press Link · Ventrac 4500Z working with Tiller - Gardens and flower beds can be prepped in no time with the Ventrac Tiller.

Enlarge Picture / Press Link · Ventrac 4500Z AWD articulating compact utility tractor left profile - Shown with optional dual wheels, suspension seat, and arm rests.

Enlarge Picture / Press Link · Ventrac 4500Z AWD articulating compact utility tractor right profile - Shown with optional dual wheels, suspension seat, and arm rests.

Enlarge Picture / Press Link · Ventrac 4500 Slope Mowing with MC600 Deck - The AWD Ventrac 4500 is a safer option for slopes and hills while the mower deck gives you and even cut even on those slopes.

Enlarge Picture / Press Link · Ventrac 4500 climbing hills with AWD - All-wheel drive Ventrac tractors handle hills better than other tractors and articulated steering increases maneuverability for safer operation on slopes.

Enlarge Picture / Press Link · AWD Ventrac 4500 with 72 inch mowing deck - The all-wheel drive Ventrac 4500 can maneuver through wet, marshy, rough, and uneven terrain.

Enlarge Picture / Press Link · Downhill mowing Ventrac 4500 with HM722 - Shown here fitted with optional dual tires the Ventrac 4500 is more stable and safer on hills than zero turn mowers.

Enlarge Picture / Press Link · Ventrac 4500Z using Contour Mower - Three decks float independently and follow the contour of the terrain with up to 40 degrees of motion for each side deck. The MJ840 also features full rear rollers for even cutting and striping, rear discharge, and a flip-up deck design.

Enlarge Picture / Press Link · Ventrac 4500 Tackling Winter - All-wheel drive, heated cab, powerful snow blower, and the reliability of a Ventrac gives you the advantage over winter.

Enlarge Picture / Press Link · Ventrac 4500 and snow package KX523 - A two stage snow blower, the KX523 features a 16" diameter solid auger for best snow transfer, a large 20" diameter fan, and the ability to move 4500 pounds of snow per minute at distances up to 40 feet.

Enlarge Picture / Press Link · Ventrac 4500Z using KX523 Snowblower - The powerful auger and chute allows you to easily toss snow over high retaining walls and out of your way.

Enlarge Picture / Press Link · Ventrac 4500 and KX523 Snowblower takes on Winter - The hydraulically activated discharge chute can rotate 220 degrees, all from the convenience of Ventrac's exclusive S.D.L.A. control system. Chute deflection is manually adjustable. An electric chute deflection controller is optional.

Enlarge Picture / Press Link · Trailer Mover on Ventrac 4500Z - It's simpler to move a trailer when everything is in front of you and you don't have to be turned around the entire time.

Enlarge Picture / Press Link · Ventrac 4500Z Parking Trailer with the Trailer Mover - Using the hydraulic lift the Trailer Mover enables you to move trailers without messing with the jack stand making moving trailers fast and easy.

Industry Solutions

New Ventrac 4500 Introduction

Watch extended interview with Ryan Steiner, Director of Engineering.

Learn More

Learn all the benefits of the 4500

Compare all the 4500 models to find which one is best for you.

Learn More

Basic Operations for a Ventrac 4500 Tractor

Overview of the basic operation for a Ventrac 4500 Tractor. Always read and understand Operator's Manual before operating a Ventrac tractor.

Learn More

All Industries

4500z SPECIFICATIONS

Measurement System:
Standard

Metric

Specifications	39.51208
Info
Sales Model	4500Z
Full Description	KN, 4500Z Kubota WG972-GL
Product Type	Tractor
Engine
Engine Manufacturer	Kubota
Model #	WG972-GL
Horsepower	32¹⁄₂ hp
Peak Torque	50.6 ft-lbf
Engine Disp.	962 cc
Num. of Cylinders	3
Cooling	Liquid
Fuel Capacity	6 gal
Fuel Type	Gas
Drive System
Drive	AWD All Wheel Drive
Travel Speed - Low Range	5 mph, 4 mph reverse
Travel Speed - High Range	10 mph, 8 mph reverse
Dimensions
Overall Length	81¹⁄₂ in standard hitch, ROPS up
Height (ROPS up)	68 in
Overall Width	48¹⁄₂ in
Height (ROPS down)	54 in
Weight with 3Pt hitch	1750 lbs
Wheelbase	45 in
Weight	1655 lbs
Tires
All Terrain	22x12-8
Turf	22x11-10
Bar	21x11-8
General
Turning Radius	39 in
Ground Clearance	5 in
Oscillation amount (@wheel)	7¹⁄₂ in

Downloads

Specifications Sheet
Size: 3.36 MB

V-Plus Warranty:

* Warranty Info

Commercial: 2 year*
