4520 Tractor

4520 Tractor

Elevate. The Next Level.

Through Ventrac’s advanced engineering and design efforts, the best mix of machine performance, operator experience, and durability has come together in the 4520 tractor.

Ventrac has become the #1 choice for versatility for grounds care professionals. Combining the perfect blend of peak power and agility with front-mounted attachments for superior visibility, pivoting frame for maneuverability, and proper weight distribution for balance and stability, it’s time to elevate your Ventrac experience to a whole new level.

  • 4520K VANGUARD M54 39.51219
    Starting at $26,470 MSRP*
  • 4520N KUBOTA WG972 EFI 39.51225
    Starting at $33,700 MSRP*
  • 4520P KAWASAKI FD851D 39.51216
    Starting at $29,795 MSRP*
  • 4520Y KUBOTA D902 39.51217
    Starting at $31,070 MSRP*
  • 4520Z KUBOTA WG972-GL 39.51215
    Starting at $31,070 MSRP*
  • *Taxes, shipping & handling, setup, freight and/or delivery charges are not included. Price shown is for informational purposes only. Consult an authorized Ventrac Dealer for complete details, pricing, warranty and safety information. All prices are shown in U.S. Dollars for products sold in the United States only. Not all models available for sale in California, see dealers for details.

Versatility
That Works

At its core, the 4520 is a compact tractor, but it is very different than what most are used to seeing and that is a great thing. The purpose of a tractor is to perform tasks more efficiently, with better results than hand labor. The Ventrac 4520 plays on these advantages, then takes it to the next level. When coupled with the extensive line of Ventrac attachments, this tractor is a great machine for a variety of professional users.

Industry Solutions

New for the 4520

  • Redesigned Operator Dashboard with USB Charge Port
  • Improved Performance
  • Faster Hydraulic Speed
  • Quieter Operation
  • Brighter LED Lighting Output

Ventrac Benefits

Quick Connect Out-Front attachments

•  Better Visibility
•  Higher Performance
•  Superior Control
•  Tool Free, Quick Connect

FlexFrame

•   Tighter Turning Radius
•   Smoother Ride
•   Better Stability
•   Better Ground Contact
•   Consistent low ground pressure
•   Powerful Flexibility
•   Significantly reduced turf disturbance compared to traditional, fixed frame tractors

Weight Transfer


•   Increased Stability
•   Better Traction
•   Improved Slope Performance
•   Quick Adjusting
•   Control of Mowing Stripes

All-Wheel Drive

•   Full Time All-Wheel Drive
•   Maximum Performance in every situation

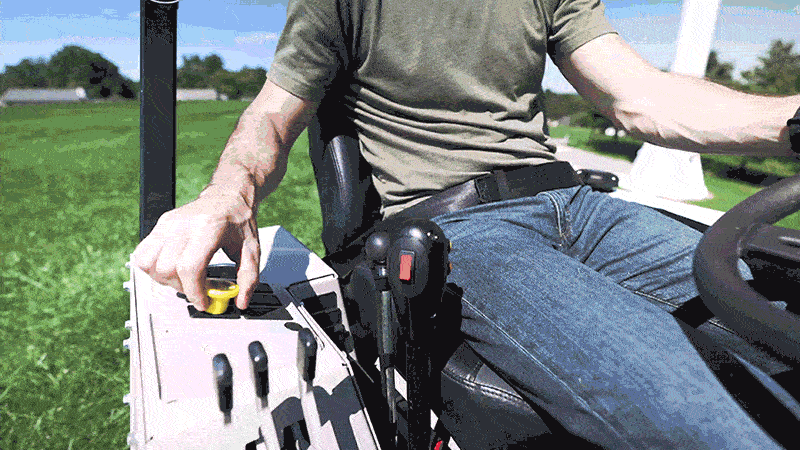

Effortless Steering/Controls (SDLA)

•   Intuitive Controls
•   Quick response
•   Comfortable
•   Easy to Use

Light Footprint

•   8 Tires for better weight distribution
•   Minimized impact on turf
•   Operate on soft ground conditions

All-Season Performance

•   Ready to work in any weather
•   Over 30 Attachments
•   Power to get the job done

Low Profile Design

•   Compact Design allows for better utilization of trailer/shop space
•   Center of Gravity for optimized for stability, especially when mowing slopes

Find Your Local Dealer

Search for your nearest Ventrac dealer to schedule your demo today.

4520 Engine Options

4520K

  • B&S Vanguard
  • 31 HP
  • Air Cooled
  • Gas
  • 2-cylinder
  • 896cc Engine Disp
  • 1385 lbs

4520P

  • Kawasaki
  • 31HP
  • Liquid
  • Gas DFI
  • 2-cyl
  • 824cc
  • 1620 lbs

4520Y

  • Kubota
  • 25HP
  • Liquid
  • Diesel
  • 3-cyl
  • 898cc
  • 1705 lbs

4520Z

  • Kubota
  • 32.5HP
  • Liquid
  • Gas
  • 3-cyl
  • 962cc
  • 1690 lbs

4520N

  • Kubota
  • 32.5HP
  • Liquid
  • Gas EFI
  • 3-cyl
  • 962cc
  • 1700 lbs

Designed for Slopes

30 Degree Slope

58% Grade

4520 with Dual Wheels

25 Degree Slope

47% Grade

4520 with Wheel Extensions

20 Degree Slope

36% Grade

4520 with Standard Wheels

See it in Action

Make Our Accessories
Work for you

4520 Specs

Measurement System:

Specifications 39.51215 39.51216 39.51217 39.51219 39.51225
Info
Sales Model 4520Z 4520P 4520Y 4520K 4520N
Full Description KN, 4520Z Kubota WG972-GL KN, 4520P Kawasaki FD851D KN, 4520Y Kubota D902 KN, 4520K Vanguard M54 KN, 4520N Kubota WG972 EFI
Product Type Tractor Tractor Tractor Tractor Tractor
Engine
Engine Manufacturer Kubota Kawasaki Kubota B&S Vanguard Kubota
Model # WG972-GL-E3 FD851D DFI D902 Vanguard M54 WG972-G-E4
Horsepower 3212 hp 31 hp 25 hp 31 hp 3212 hp
Peak Torque 51 ft-lbf 47.1 ft-lbf 42 ft-lbf 47.4 ft-lbf 51 ft-lbf
Num. of Cylinders 3 2 3 2 3
Engine Disp. 962 cc 824 cc 898 cc 896 cc 962 cc
Cooling Liquid Liquid Liquid Air Liquid
Fuel Capacity 6 gal 6 gal 6 gal 6 gal 6 gal
Fuel Type Gas Gas Diesel Gas Gas
Est. Fuel Economy (W/ 60in Mower) 112 gal /hour 1.2 gal /hour 1.1 gal /hour 1.6 gal /hour 1.2 gal /hour
Drive System
Drive AWD All Wheel Drive AWD All Wheel Drive AWD All Wheel Drive AWD All Wheel Drive AWD All Wheel Drive
Travel Speed - Low Range 5 mph, 4 mph reverse 5 mph, 4 mph reverse 5 mph, 4 mph reverse 5 mph, 4 mph reverse 5 mph, 4 mph reverse
Travel Speed - High Range 10 mph, 8 mph reverse 10 mph, 8 mph reverse 10 mph, 8 mph reverse 10 mph, 8 mph reverse 10 mph, 8 mph reverse
Dimensions
Overall Width 4812 in 4812 in 4812 in 4812 in 4812 in
Overall Length 8112 in standard hitch, ROPS up 8112 in standard hitch, ROPS up 8112 in standard hitch, ROPS up 8112 in standard hitch, ROPS up 8112 in standard hitch, ROPS up
Height (ROPS up) 68 in 68 in 68 in 68 in 68 in
Height (ROPS down) 54 in 54 in 54 in 54 in 54 in
Weight with 3Pt hitch 1770 lbs 1700 lbs 1785 lbs 1465 lbs 1780 lbs
Wheelbase 45 in 45 in 45 in 45 in 45 in
Weight 1690 lbs 1620 lbs 1705 lbs 1385 lbs 1700 lbs
Tires
All Terrain standard 22x12-8 standard 22x12-8 standard 22x12-8 standard 22x12-8 standard 22x12-8
Turf standard 22x11-10 standard 22x11-10 standard 22x11-10 standard 22x11-10 standard 22x11-10
General
Turning Radius 39 in 39 in 39 in 39 in 39 in
Ground Clearance 5 in 5 in 5 in 5 in 5 in
Oscillation amount (@wheel) 712 in 712 in 712 in 712 in 712 in
