- 4520P KAWASAKI FD851D 39.51216 Starting at $28,695 MSRP*
- 4520P KAWASAKI FD851D CAL 39.51221 Starting at $29,500 MSRP*
*Taxes, shipping & handling, setup, freight and/or delivery charges are not included. Price shown is for informational purposes only. Consult an authorized Ventrac Dealer for complete details, pricing, warranty and safety information. All prices are shown in U.S. Dollars for products sold in the United States only.
- 70.4160 KIT, 3 POINT HITCH 4520
- 70.4160-99 KIT, 3 POINT HITCH 4520
- 70.4167-99 KIT, HEATED SUSPENSION SEAT 4520
- 13.0307 TUBE, SPARK ARRESTOR 1.5"
- 53.0207-99 WHEEL, ASM 22X11X10 TURF FACTORY
Industry Solutions
Ventrac 4520 Takes Versatility to the Next Level
Ventrac 4520 Takes Versatility to the Next Level
Learn More4520p SPECIFICATIONS
| Specifications | 39.51216 | 39.51221 |
|---|---|---|
| Info | ||
| Picture | | |

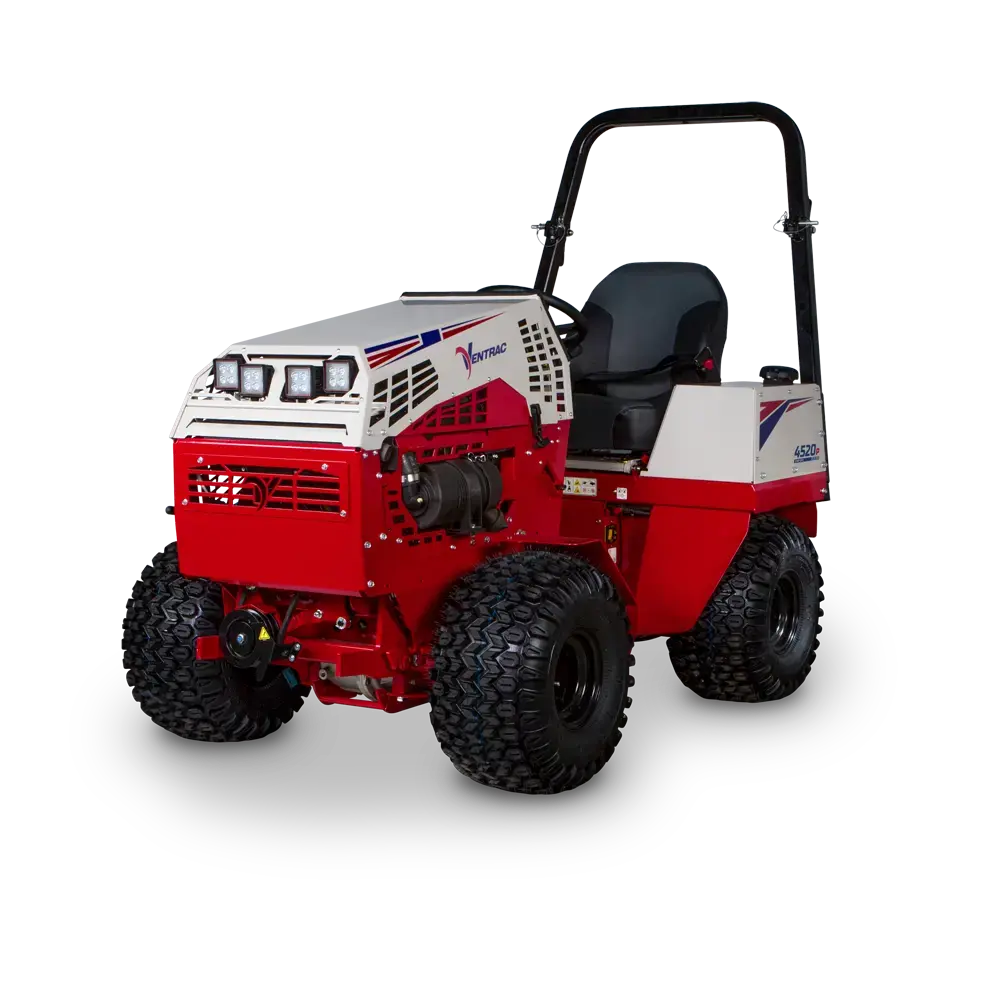

| Sales Model | 4520P | 4520P |
| Full Description | KN, 4520P Kawasaki FD851D | KN, 4520P Kawasaki FD851D Cal |
| Product Type | Tractor | Tractor |
| Engine | ||
| Engine Manufacturer | Kawasaki | |
| Model # | FD851D DFI | |
| Horsepower | 31 hp | |
| Peak Torque | 47.1 ft-lbf | |
| Engine Disp. | 824 cc | |
| Num. of Cylinders | 2 | |
| Cooling | Liquid | |
| Fuel Capacity | 6 gal | |
| Fuel Type | Gas | |
| Est. Fuel Economy (W/ 60in Mower) | 1.2 gal /hour | |
| Drive System | ||
| Drive | AWD All Wheel Drive | |
| Travel Speed - Low Range | 5 mph, 4 mph reverse | |
| Travel Speed - High Range | 10 mph, 8 mph reverse | |
| Dimensions | ||
| Overall Length | 811⁄2 in standard hitch, ROPS up | |
| Overall Width | 481⁄2 in | |
| Height (ROPS up) | 68 in | |
| Height (ROPS down) | 54 in | |
| Weight with 3Pt hitch | 1700 lbs | |
| Wheelbase | 45 in | |
| Weight | 1620 lbs | |
| Tires | ||
| All Terrain | | |
| Turf | | |
| Bar | | |
| General | ||
| Turning Radius | 39 in | |
| Ground Clearance | 5 in | |
| Oscillation amount (@wheel) | 71⁄2 in | |
