Kubota D902 engine.
Simple Start | 4520Y
How to operate the Ventrac 4520 tractor. In this basic overview, Aaron highlights basic tractor features and controls.
This overview provides Ventrac operators basic refresher information on how to properly and safely operate the Ventrac 4520 series tractor. Although this video will cover a wide range of features, safety, maintenance, and operational procedures, always read and fully understand the operator's manual before attempting to operate your Ventrac equipment. The manual covers items and procedures specific to your equipment, adjustment specifications, maintenance, and more.
Products featured in this video:
Ventrac 4520: https://www.ventrac.com/products/tractors/4520
Power Rake: https://www.ventrac.com/products/attachments/kg540
For more information, visit https://www.ventrac.com/
Find a dealer near you! https://www.ventrac.com/dealers
Get a FREE catalog! https://www.ventrac.com/contact/catalog
Subscribe here! https://www.youtube.com/channel/UC0aiC7V2JS3nh11R5tRuIUw
Connect with Us! Facebook - https://www.facebook.com/ventrac/ Instagram - @ventrac_tractors Twitter - @ventrac 00:00 Introduction 02:30 Connecting Attachments 10:05 Operator Controls 25:24 Wheels 34:05 Weight Transfer 36:09 Basic Maintenance 46:42 3-Point Hitch 49:38 Extras
Base Specifications
| Info | |
|---|---|
|

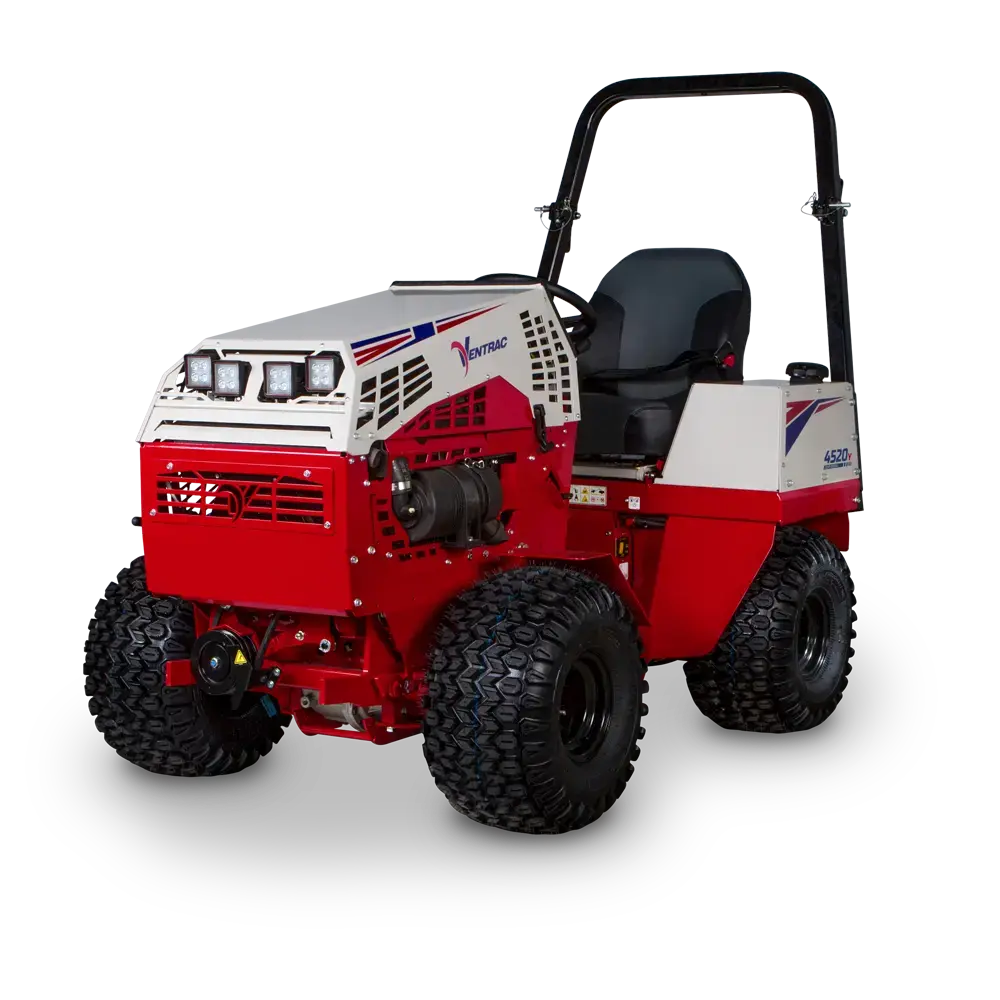

Product Image
|
|
|
Model
|
|
|
Description
|
Compact Tractor
|
|
Product Type
|
|
|
Sku
|
39.51217
|
|
Price
|
$32,625
|
| General | |
|
Turning Radius
|
39in
99.06cm
|
|
Ground Clearance
|
5in
12.7cm
|
|
Oscillation amount (@wheel)
|
7.5in
19.05cm
|
| Engine | |
|
Cooling
|
Liquid
|
|
Engine Manufacturer
|
Kubota
|
|
Fuel Capacity
|
6gal
22.71l
|
|
Horsepower
|
25hp
25hp
|
|
Fuel Type
|
Diesel
|
|
Engine Disp.
|
cc
|
|
Num. of Cylinders
|
3
|
|
Model #
|
D902
|
|
Peak Torque
|
42ft-lbf
56.94N-m
|
|
Est. Fuel Economy (W/ 60in Mower)
|
1.1 gal/hr
4.164 l/hr
|
| Drive System | |
|
Drive
|
AWD All Wheel Drive
|
|
Travel Speed - Low Range
|
reverse
reverse
|
|
Travel Speed - High Range
|
reverse
reverse
|
| Dimensions | |
|
Overall Width
|
48.5in
123.2cm
|
|
Weight
|
1705lb
773.4kg
|
|
Overall Length
|
standard hitch, ROPS up
standard hitch, ROPS up
|
|
Height (ROPS up)
|
68in
172.7cm
|
|
Height (ROPS down)
|
54in
137.2cm
|
|
Weight with 3Pt hitch
|
1785lb
809.7kg
|
|
Wheelbase
|
45in
114.3cm
|
| Tires | |
|
All Terrain
|
standard/optional22x12-8
|
|
Turf
|
standard/optional22x11-10
|
The Ventrac FlexFrame gives the 4520 tractor the ability to both articulate and oscillate, allowing the machine to move naturally with the terrain. Instead of fighting uneven ground, it flexes and adapts as conditions change. The result is greater stability, traction, and confidence on slopes and surfaces that aren't perfectly flat.
- Won't Tear Up Turf
- Tighter Turning Radius
- Articulates up to 15 Degrees
- Better Slope Stability
- Better Ground Contact
Quick Connect Out-Front Attachments
The Ventrac Mount System raises the standard for how tractors should connect to their attachments should never take a lot of time or effort. With the Ventrac Mount System changing attachments to get to the next job is a breeze. With experience, all Ventrac attachments connect in minutes without the need of tools or heavy lifting.
4520 PRO Upgrade Kit
Starting at $2,140The 4520 PRO includes five key additions: a foot pedal, dual auxilary hydraulics, 3rd-function hydraulics, relief valve, and front 12-volt. Together, these five accessories allow the 4520 to run all of our most popular attachments.
One of the most important details is that the PRO is a factory-installed option meaning it was built here at Ventrac with quality control and consistency. And when you see the PRO decal on a tractor at your local dealer, you know this machine is ready to work, and you can do anything with it.
