The Ventrac NV360 V-Blade is a rugged 36-inch wide attachment designed for the SSV platform, providing powerful snow removal for sidewalks, walkways, and narrow property zones.
The SSV equipped with the NV360 V-Blade handles deep snow in public parks and plazas by using the V-position and active wings to channel and relocate snow piles away from pedestrian pathways.
When clearing sidewalks in front of businesses after a heavy snowstorm, the NV360 V-Blade’s wings and trip-edge combine to efficiently push snow off walkways while minimizing impact to edges and curbs.
With the NV360 V-Blade angled to the side, the SSV efficiently pushes snow off business walkways, keeping entrances clear for customers while directing snow safely away from storefronts and landscaping.
Featuring oscillation built into the frame, the NV360 V-Blade follows pavement inconsistencies to maintain contact and reduce chattering, making it ideal for school zones, business fronts, and public pathways.
With fully active wings and power wing angle control, the NV360 permits sharp V, scoop, and straight blade configurations to adapt to different snow depths and relocation tasks.
The NV360 is perfect for contractors, municipalities, and property managers who need efficient snow clearing around tight corners, loading zones, and confined walkways.
Weighing 255 pounds with hardened steel cutting edge and adjustable skid shoes, the NV360 is built for durability and consistent performance even under tough, abrasive snow and ice conditions.

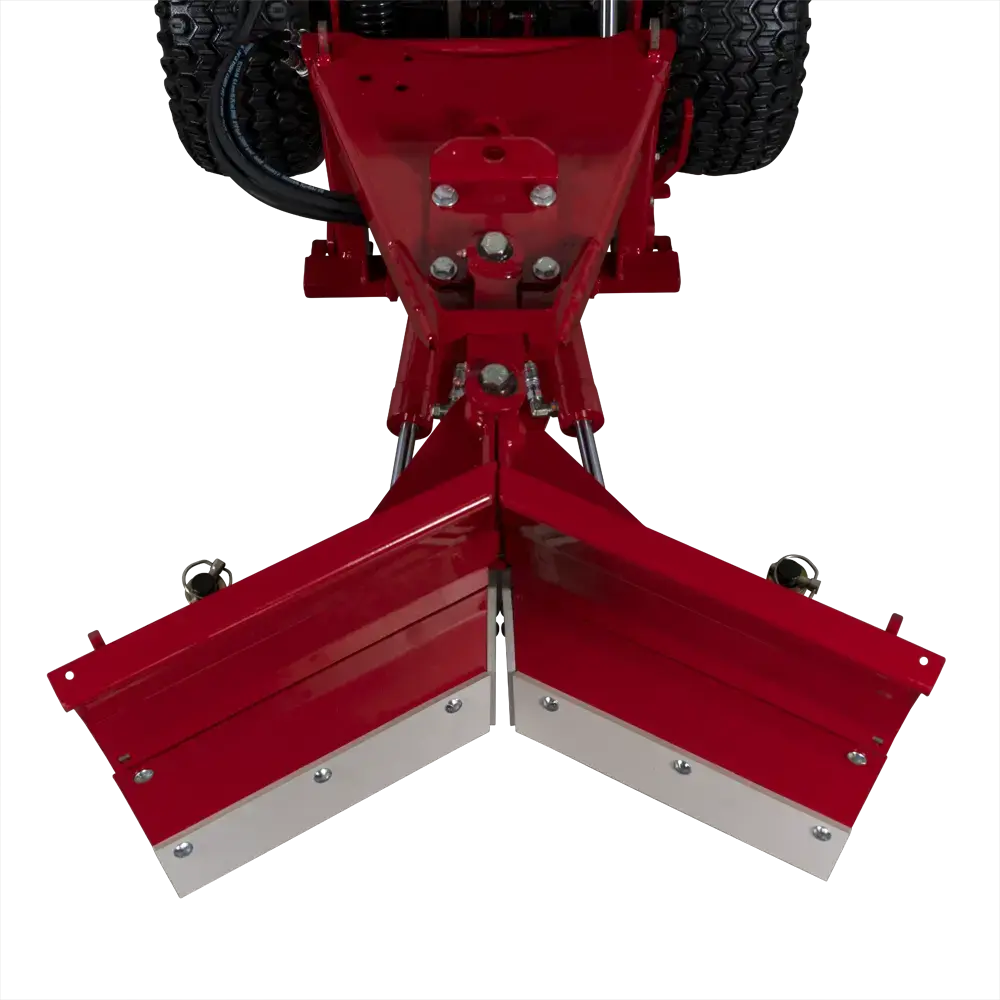

In the scoop position, the NV360 V-Blade angles both wings forward to trap and contain snow, allowing operators to carry and relocate heavy piles away from sidewalks and entrances with control and efficiency.
Angled-right mode mirrors this flexibility, channeling snow efficiently to the right to avoid doorways, landscape beds, or curbside obstructions.

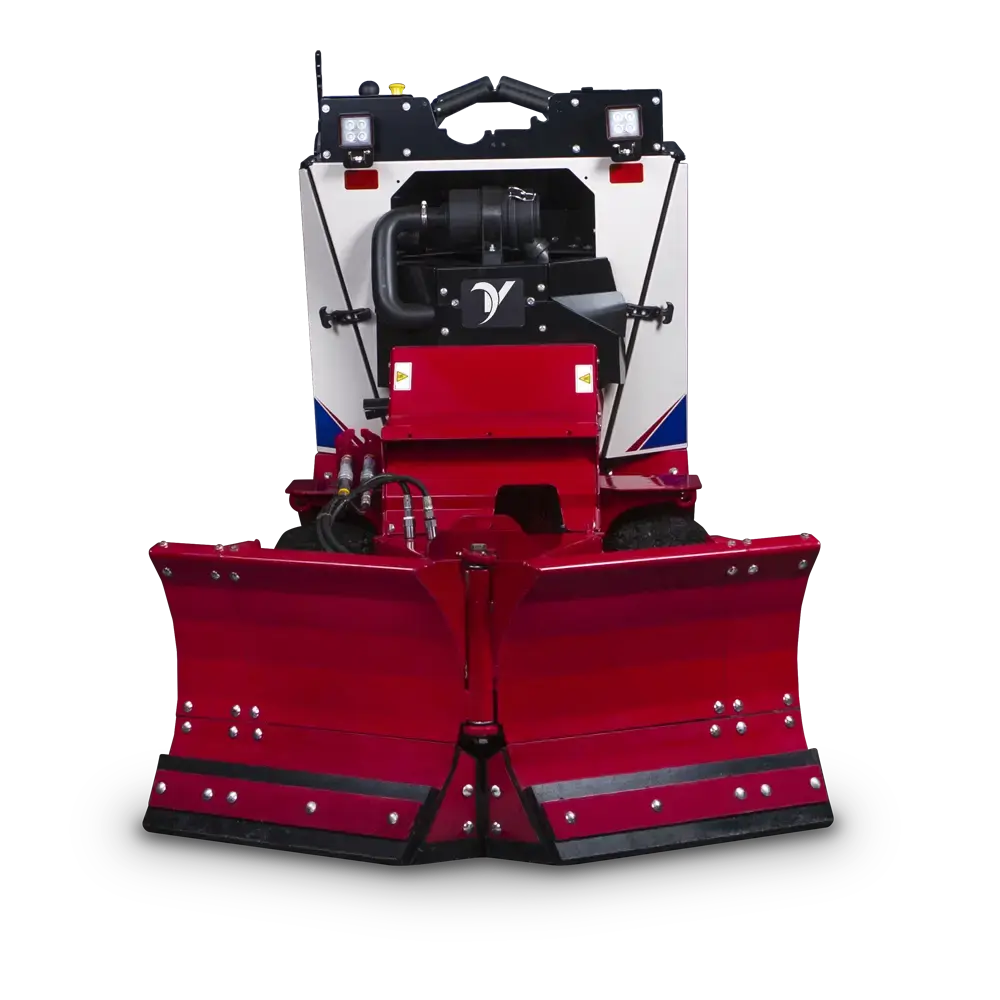

In the V-position, the NV360 wings form a ‘V’ shape to funnel deeper snow into a center path, allowing the SSV machine to operate more efficiently in deeper snowfall.
Angled-left configuration allows the NV360 to bank snow to the left side, directing cleared snow away from buildings or pedestrian areas with precision.
Base Specifications
| Info | |
|---|---|
|
Sales Model
|
NV360
|
|
Full Description
|
NV, NV360 V-Blade
|
|
Product Type
|
Attachment
|
|
Product Image
|
|
|
Model
|
|
|
Description
|
V-Blade
|
|
Product Type
|
|
|
Sku
|
39.65120
|
|
Price
|
$3,710
|
| Dimensions | |
|
Front Mount
|
SSV Mount System
|
| Dimensions | |
|
Overall Width
|
91.4cm
91.4cm
|
|
Height
|
54.6cm
54.6cm
|
|
Weight
|
115.6 kg
115.6 kg
|
|
Overall Length
|
61cm
61cm
|
|
Overall Width (Wings Back)
|
91.4cm
91.4cm
|
|
Overall Width (Wings Forward)
|
81.3cm
81.3cm
|
|
Blade Wing Angle (Forward & Backward
|
degrees
|
