Slip Scoop
Move brush and larger materials such as logs with the optional grapple
Simple Start | HE480
https://www.ventrac.com/ The Ventrac Power Bucket is the perfect tool for transporting gravel, stone, and mulch material for landscaping as well as excavating, back-filling, leveling, digging, and grading. The bucket is hydraulically controlled so your work time is cut down with minimal effort from the driver's seat. Time is maximized when you transform the bucket by adding the grapple kit to transport debris, brush, branches, logs and more!
For more information, visit https://www.ventrac.com/
Products featured in this video: Ventrac 4500: https://www.ventrac.com/products/tractors/4500
HE480 Power Bucket: https://www.ventrac.com/products/attachments/he
HE100 Grapple: https://www.ventrac.com/products/accessories/he100
Find a dealer near you! https://www.ventrac.com/dealers
Get a FREE catalog! https://www.ventrac.com/contact/catalog
Subscribe here! https://www.youtube.com/channel/UC0aiC7V2JS3nh11R5tRuIUw
Connect with Us! Facebook - https://www.facebook.com/ventrac/ Instagram - @ventrac_tractors Twitter - @ventrac
Video Transcript: Hi, I'm Aaron Graber with Ventrac. In this video, we're gonna talk about the power bucket. The Ventrac power bucket is 48 inches wide and has a 6 cubic foot capacity. It's great for moving mulch gravel sand or other loose debris we also have different accessories including bolt-on cutting teeth mulch extensions and a grapple. The power bucket connects to the tractor using the front hitch arms it also uses the auxiliary hydraulics to handle the dump function. Use the SDLA lever to control the power bucket by moving the main arm right to left to raise or lower and the auxiliary arm right to left to dump. The power bucket is one of the most useful attachments that we offer it's a great alternative to a traditional loader when you're working near the ground or in tight spaces. Most of what you can do with the loader you can do with the power bucket and it's a lot easier to connect to and easier to use. Let's take a look at some tips and tricks for using the power bucket on a Ventrac 4500 tractor. Connecting to the power bucket is a simple task and can be done in less than a minute but there is one important thing to remember. You need to make sure your hitch arms are at the right height to make it as easy as possible. To do this best when you detach from the tractor put the bucket in float and make sure this bottom surface is about level with the ground. You'll notice that these lift cylinders are almost completely contracted that way. If they're extended too far these hitch arms will be too low and will be difficult to connect the next time. On lighter attachments like the power bucket, you might need to block them or put something in front so they don't slide forward as you connect to them Another tip for getting the most out of your power bucket is understanding weight transfer. On 4,500 tractors the weight transfer lever is right here there are four different settings one through four on the higher settings you transfer more weight back from the attachment to the tractor when that actually helps you do is lift more material.
Base Specifications
| Info | |
|---|---|
|

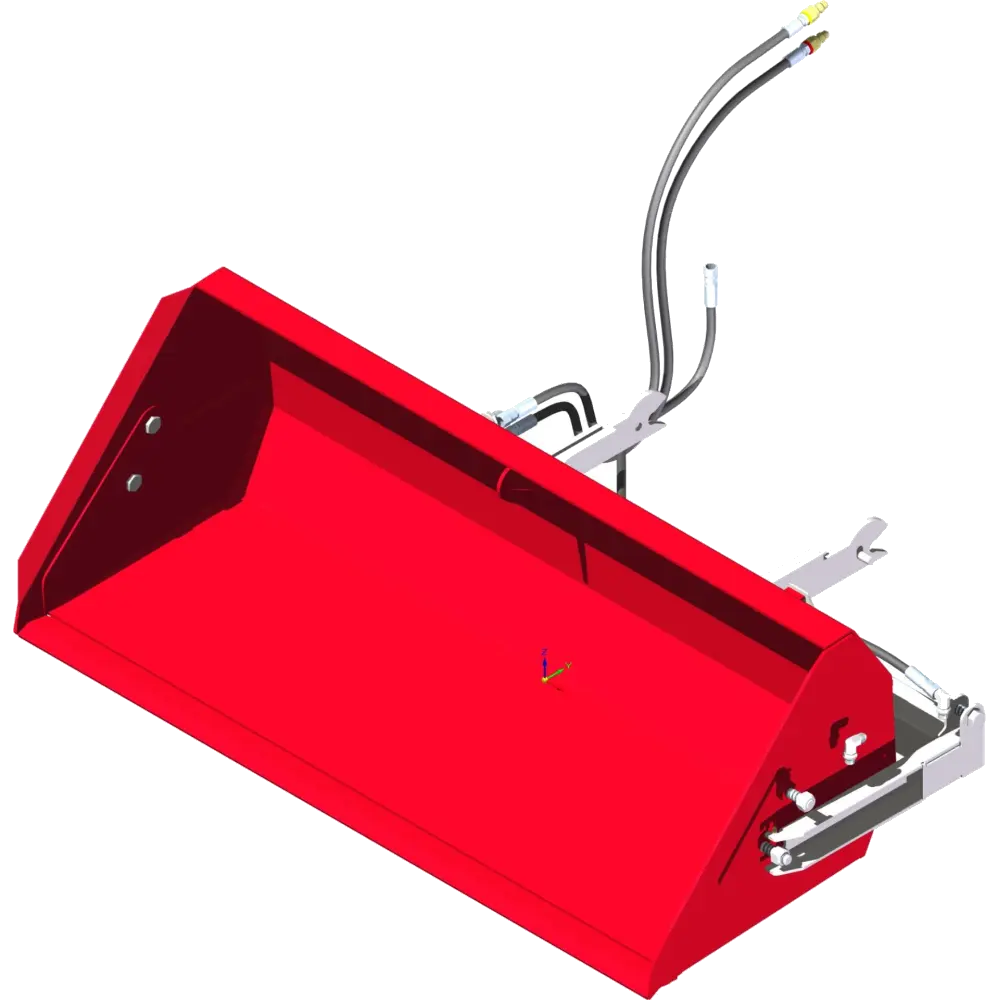

Product Image
|
|
|
Model
|
|
|
Description
|
Slip Scoop
|
|
Product Type
|
|
|
Sku
|
39.55210
|
| General | |
|
Bucket Capacity
|
6ft³
0.1699m³
|
|
Dump Angle
|
degrees@ Full Height
|
| Dimensions | |
|
Front Mount
|
|
|
4000 Series Mount
|
|
|
3000 Series Mount
|
|
| Dimensions | |
|
Length
|
34in
86.36cm
|
|
Overall Width
|
53in
134.6cm
|
|
Height
|
16in
40.64cm
|
|
Weight
|
175lb
79.38kg
|
|
Working Width
|
48in
121.9cm
|
|
Length with KT Tractor
|
108in
274.3cm
|
|
Length with LE Tractor
|
98.5in
250.2cm
|
|
Crated Weight
|
238lb
108kg
|
|
Max Ground Clearance, Raised
|
11in
27.94cm
|
|
Max Ground Clearance, Dumped
|
9in
22.86cm
|
