Product Overview
This product has been discontinued.

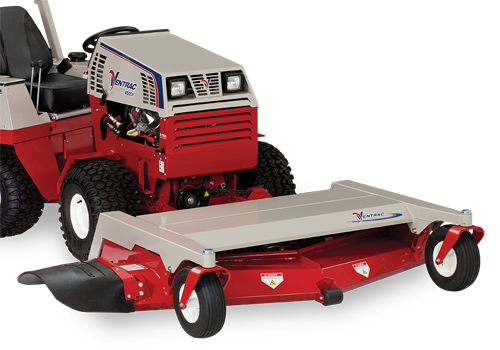

Ventrac HM & HP Mower Decks utilize a rugged all steel frame design, which suspends the Ventrac's progressive discharge deck. This design gives you a high efficiency grass discharge for a better quality of cut by moving more grass efficiently through the deck tunnel. With the removal of two pins beneath the cross frame, the deck can be easily tilted to a near vertical position for maintenance and storage.
All HM and HP decks offer full-width rear rollers with large pneumatic front swivel caster tires to float over the terrain independent of the tractor. Engage the tractor's integrated adjustable weight transfer system which transfers a percentage of the mower weight back to the tractor, for increased traction and stability on slopes and inclines.
The HP deck is a 72-inch mower which is offset to the left side 6.5 inches. This aids in mowing along ditches, ponds and trimming around obstacles, keeping the tractor on solid ground. The offset also makes for a smaller cutting radius increasing productivity.
The LAS Linear Adjustment System, provides cutting height selections between 1 to 4 inches (4.5 to 12 cm). A single hand height adjustment allows for an effortless change in cutting height. A slide release allows the handle to be returned to the deck level preventing it from catching on low obstacles.
All Ventrac finish mowers feature full width rollers for exceptional yard striping. These professional grade mowers are built to give you maximum performance and productivity.
MODELS
HM602 COMPLETE MOWER DECK 39.55105
HM722 COMPLETE MOWER DECK 39.55106
HP722 MOWER DECK OFFSET 39.55107
ACCESSORY OPTIONS
39.55151 HM, KIT MULCHING HM/HP720/722
39.55150 HM, KIT MULCHING HM600/602
PRODUCT BENEFITS
-
Striping Advantage
A striped lawn is a stunning lawn. The results you get from Ventrac finish mowers will give you a lawn you can be proud of. The full-width rear rollers on each of the finish mowers create a professional striping pattern. You can tell when a lawn has been mowed by a Ventrac! -
High End Finish Cut
A full floating deck prevents scalping and will float over the landscape without gouging or tearing up turf. The progressive flow deck design allows for grass to move quickly and easily through the mower and out the discharge chute to leave a flawless finish. -
Precise Mowing Height
Ventrac's finish mowers offer you a variety of cutting positions, height levels, and cutting widths to meet your mowing needs. A single lever allows you to quickly make adjustments. -
Easy Service Flip-Up Deck
The flip-up deck design is ideal for easy storage, transportation, and servicing. It requires no tools or the removal of belts. -
Durability
Made with rugged commercial grade components, Ventrac finish mowers will hold up to years of use. Built with heavy gauge steel and a reinforced frame for reliable performance and less down time. -
Ventrac Mount System
With a little practice, you can switch almost any attachment within a minute, without any tools or heavy lifting. -
Optional Vacuum Collection System
Use your mower to quickly collect fall leaves and overgrown grass. The RV602 is an optional attachment that connects to HM/HP Series mowers.
RESOURCES
-
Lawn Striping Envy
Mark shares his secrets of how he makes his yard the envy of the neighborhood. Using his Ventrac tractor and mower attachment, Mark stripes is lawn, leaving it looking like a professional ball field. -
Ventrac Quality Cut
NC State get its stripes with a Ventrac finish mower -
Flip-Up Deck
See how easy it is to flip-up a Ventrac Mower deck without the need to remove a belt or use tools. -
Finish Mower Advantage
Ventrac finish decks are designed to be the best cutting and longest lasting finish mowersavailable. The full floating deck prevents scalping leaving a professionally manicured field of grass. -
Slope Mowing with Jack Wiley
Long time Ventrac owner, Jack Wiley, explains why Ventrac all wheel drive compact articulating tractors excel on slopes. Wiley explains why Ventrac is safer and causes less turf damage on slopes than other tractors.
hmhp SPECIFICATIONS
Specifications | 39.55105 | 39.55106 | 39.55107 |
---|---|---|---|
Info | |||
Picture | ![]() | ![]() | ![]() |
Sales Model | HM602 | HM722 | HP722 |
Full Description | HM, HM602 Complete Mower Deck | HM, HM722 Complete Mower Deck | HP, HP722 Mower Deck Offset |
Product Type | Attachment | Attachment | Attachment |
Category | |||
Product Type | Attachment | Attachment | Attachment |
Attachment Type | Mower | Mower | Mower |
Front Mount | Ventrac Mount System | Ventrac Mount System | Ventrac Mount System |
4000 Series Mount | | | |
Mower Type | Finish | Finish | Finish |
Mower Specs | |||
Cutting Width | 60 in | 72 in | 72 in |
Discharge Type | Side | Side | Side |
Discharge Deflector | Rubber | Rubber | Rubber |
Flip-Up Deck | | | |
Cutting Positions | 13 (plus low & high range) | 13 (plus low & high range) | 13 (plus low & high range) |
Cutting Heights (Standard) | 11⁄8 to 43⁄4 in | 11⁄8 to 43⁄4 in | 11⁄8 to 43⁄4 in |
Cutting Height Adjustment Type | Single lever quick select | Single lever quick select | Single lever quick select |
Number of Blades | 3 | 3 | 3 |
Blade Type | 201⁄2 in low lift | 243⁄4 in low lift | 243⁄4 in low lift |
Deck Construction | Multi-Gauge 5/16 inch (7.9 mm) at spindle mount | Multi-Gauge 5/16 inch (7.9 mm) at spindle mount | Multi-Gauge 5/16 inch (7.9 mm) at spindle mount |
Deck Suspension | 2 front tires with full width rear roller | 2 front tires with full width rear roller | 2 front tires with full width rear roller |
Dimensions | |||
Length | 52 in | 58 in | 58 in |
Overall Height | 16 in | 16 in | 16 in |
Width with Chute | 73 in | 85 in | 85 in |
Weight | 385 lbs | 472 lbs | 472 lbs |
Length of Tractor with Deck Up | 102 in | 106 in | 106 in |
