KD Blades

KD

Product Overview

Ventrac KD Power Angle Blades have working widths of 48, 60, and 72 inches (122, 152, 183 centimeters). All control functions are performed with the S.D.L.A. control for raising and lowering the blade or angling it left or right. Adjustable skid shoes accommodate dozing at selected heights, such as moving snow on gravel driveways.

The blades can be operated in a trip position for plowing or in a locked position for digging into material.

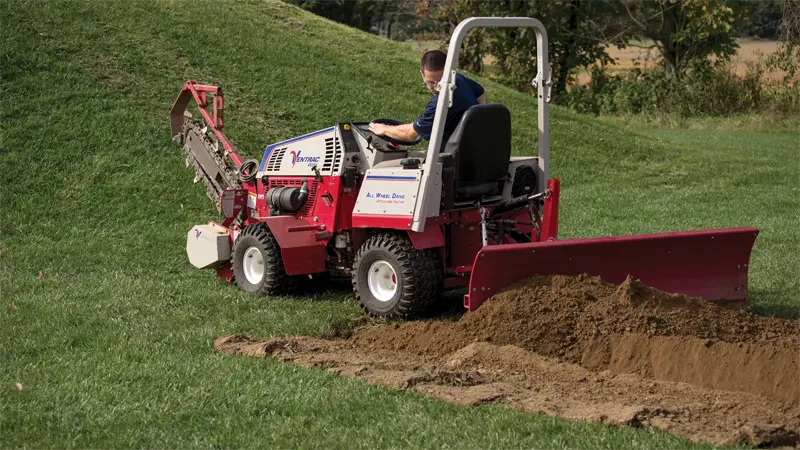

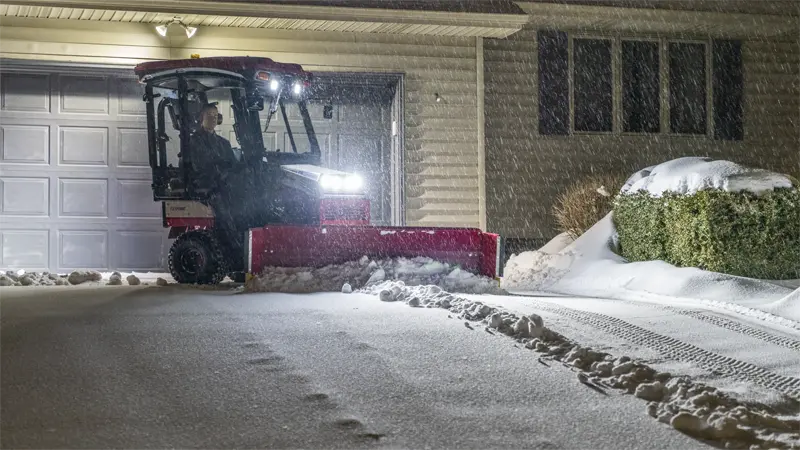

Ventrac Power Angle Blades are versatile, labor-saving attachments designed for any number of jobs. From grading, leveling, and backfilling ground to plowing snow, moving material, or cleaning an area, the Ventrac KD series blades are up to the task.

MODELS

KD482 48" DOZER BLADE 39.55251

KD602 60" DOZER BLADE 39.55252

KD722 72" DOZER BLADE 39.55253

ACCESSORY OPTIONS

70.8032 KIT, POLYURETHANE EDGE KD 48"

70.8030 KIT, POLYURETHANE EDGE KD 60"

70.8031 KIT, POLYURETHANE EDGE KD 72"

PRODUCT BENEFITS

RESOURCES

kd SPECIFICATIONS

Measurement System:

Specifications 39.55251 39.55252 39.55253
Info
Sales Model KD482 KD602 KD722
Full Description KD, KD482 48" DOZER BLADE KD, KD602 60" DOZER BLADE KD, KD722 72" DOZER BLADE
Product Type Attachment Attachment Attachment
Category
Front Mount Ventrac Mount System Ventrac Mount System Ventrac Mount System
3000 Series Mount standard standard standard
4000 Series Mount standard standard standard
Dimensions
Length 27 in 27 in 27 in
Overall Height 22 in 22 in 22 in
Overall Width 48 in 60 in 72 in
Weight 163 lbs 203 lbs 225 lbs
Shipping Dimensions(LWH) 64x2412x15.6 in 76x2412x15.6 in 88x2412x15.6 in
Crated Weight 207 lbs 272 lbs 295 lbs
General
Work Width - 0 degrees 48 in 60 in 72 in
Work Width - 30 degrees 42 in 52 in 62 in
Ground Clearance 13 in @ 0 deg. 13 in @ 0 deg. 13 in @ 0 deg.
Skid Shoes standard adjustable cast iron skid shoe discs standard adjustable cast iron skid shoe discs standard adjustable cast iron skid shoe discs
Spring Trip Mechanical On/Off Mechanical On/Off Mechanical On/Off
Hydraulic Cylinder Bore and Stroke 2x8 in 2x8 in 2x8 in
Hydraulic Power Angle standard standard standard
Max Angle (Left/Right) 30 ° 30 ° 30 °

GALLERY
