3223D 3223D Compact Tractor

3223D

Product Overview

This product has been discontinued.

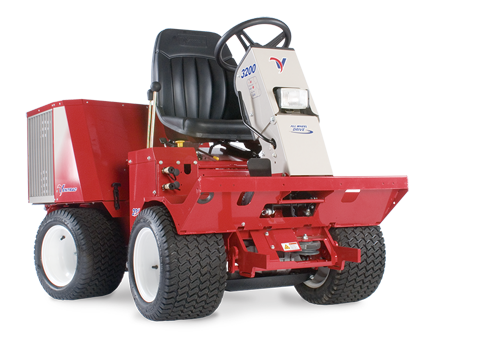

Whether you're mowing grass, grinding out a stump or moving a pile of snow or soil, the 3200 unit is more than enough tractor for whatever project that comes your way. Get attached using the Ventrac Mount System which allows you to change 18 plus attachments quickly and efficiently from job to job with minimal effort. This is Versatility at its best.

The 3200 features All-Wheel-Drive, Power Steering, Hydrostatic Drive, and more. The Ventrac Mount System allows you to change attachments quickly and efficiently, moving from job to job with minimal effort. Ventrac's patented S.D.L.A. control allows you easy control of Speed, Direction, Lift and Auxiliary function all with one hand. Combine these features with a tight 28 inch (71 cm) turning radius and you will find the 3200 can tackle jobs reserved for much larger, less maneuverable machines.

Equipped with a patented Tandem Drive Train, the 3200 efficiently transfers power to where it's needed for unparalleled performance and power.

Also standard on the 3200 is weight transfer and tilt steering wheel.

MODELS

3223D LE, 3200 VANGUARD DM850D NA 39.31405

View all models in the LE3200 series.

ACCESSORY OPTIONS

70.3020-99 KIT, LE SUSPENSION SEAT -FCTRY

53.0115-99 WHEEL, ASM18X11X10 KNOB-FACTRY

RESOURCES

3223d SPECIFICATIONS

Measurement System:

Specifications 39.31405
Info
Sales Model 3223D
Full Description LE, 3200 Vanguard DM850D NA
Product Type Tractor
Engine
Engine Manufacturer B&S Daihatsu
Model # Vanguard 522447
Horsepower 23.6 hp (22.7 hp gross @ 3200 rpm)
Engine Disp. 850 cc
Num. of Cylinders 3
Cooling Liquid
Fuel Capacity 6 gal
Fuel Type Diesel
Drive System
Drive AWD All Wheel Drive
Travel Speed 7 mph
Dimensions
Overall Height 47 in
Overall Length 72 in
Overall Width 4012 in
Weight 1050 lbs
Wheelbase 38 in
Tires
All Terrain standard 18x11-10
Turf standard 18x1012-10
General
Turning Radius 28 in
Wheelbase 38 in

Downloads

V-Plus Warranty:

Residential: 3 year*
Commercial: 2 year*
