This product has been discontinued.

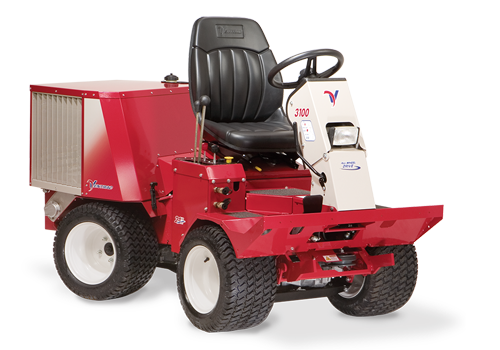

Good things come in small packages and the same is true for the Ventrac 3100. The 3100 features a 21HP Gas 2-cyl Engine (627cc) Vanguard Engine.
This power-packed unit features All-Wheel-Drive, Power Steering, Hydrostatic Drive, and more. The Ventrac Mount System allows you to change attachments quickly and efficiently, moving from job to job with minimal effort.
Equipped with a patented Tandem Drive Train, the 3100 efficiently transfers power to where it's needed for unparalleled performance and power.
Also standard on the 3100 is Ventrac's patented S.D.L.A. control, which allows for easy control of Speed,Direction, Lift and Auxiliary function all with one hand.
Combine these features with a tight 28 inch (71 cm) turning radius and you will find the 3100 can tackle jobs reserved for much larger, less maneuverable machines.
- 3121 LE, 3100 VANGUARD M38 GAS NA 39.31300
- 70.3020-99 KIT, LE SUSPENSION SEAT -FCTRY
- 70.3019-99 KIT, TILT STEERING 3400 FACTRY
- 70.3014-99 KIT, WEIGHT TRANSFER 3400 FCTRY
- 53.0115-99 WHEEL, ASM18X11X10 KNOB-FACTRY
le3100 SPECIFICATIONS
| Specifications | 39.31300 |
|---|---|
| Info | |
| Picture |  |
| Sales Model | 3121 |
| Full Description | LE, 3100 Vanguard M38 Gas NA |
| Product Type | Tractor |
| Engine | |
| Engine Manufacturer | B&S Vanguard |
| Model # | Vanguard 385777 |
| Horsepower | 21 hp (20.1 hp gross @3200) |
| Engine Disp. | 627 cc |
| Num. of Cylinders | 2 |
| Cooling | Air |
| Fuel Capacity | 5.4 gal |
| Fuel Type | Gas |
| Drive System | |
| Drive | AWD All Wheel Drive |
| Dimensions | |
| Overall Width | 401⁄2 in |
| Overall Length | 72 in |
| Height | 47 in |
| Wheelbase | 38 in |
| Weight | 850 lbs |
| Tires | |
| All Terrain | |
| Turf | |
| General | |
| Wheelbase | 38 in |
| Turning Radius | 28 in |
