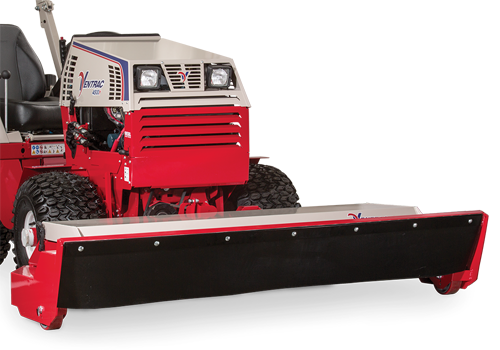

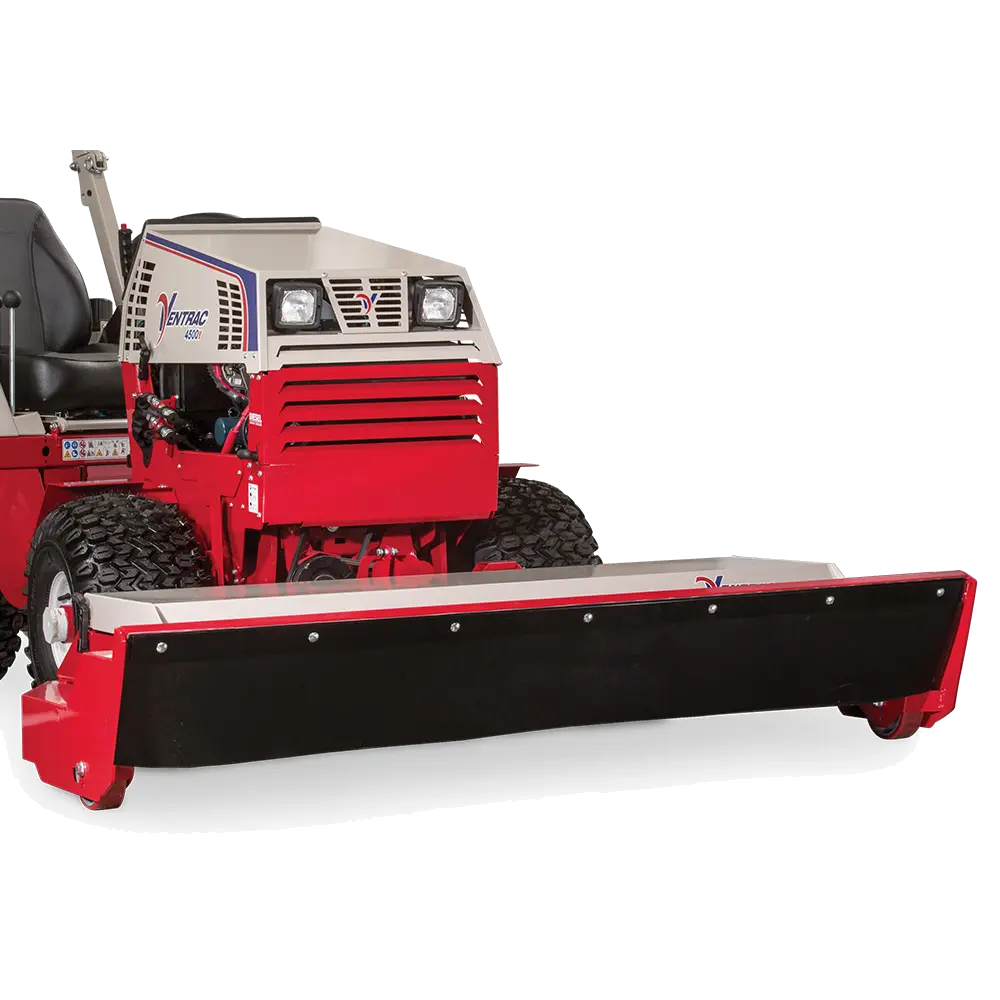

HQ680 Tough Cut Brush Mower Product Overview
Tough Cut Mower is designed for mowing high grass, thick weeds, and heavy brush. A large baffled front opening helps direct materials into the deck and helps hinder debris from escaping.
Three heavy-duty blades counter rotate to cut and deposit waste evenly without windrowing. Capable of tackling saplings and large thorn bushes, the Tough Cut makes short work out of overgrown thickets.
The Tough Cut can be adjusted to three cutting heights: 3, 3 5/8, and 4¼ inches. Easy servicing of belts and pulleys is provided by the hinged and removable cover. The tilt-up deck provides easy access to the blades.
HQ680 MOWER, TOUGH CUT 39.55104 ACCESSORY OPTIONS
KIT, SWIVEL WHEEL HQ680 70.8054
PRODUCT BENEFITS Clear Path When the attachment does the work first, the tractor drives over a cleared path rather than trampling grass down before cutting. This innovative design helps reduce uneven mowing. Heavy Duty Deck Shell Heavy duty welded deck can handle the toughest cutting conditions and is built to last for years. Counter Rotating Dual-Sided Blades Blades spin in opposite directions providing for the better discharge of material. Mower blades are sharp on both sides so they can be used on right or left-hand spindles, allowing for double blade life. Flip-Up Deck Cleaning the deck and changing blades couldn't be easier with Ventrac's quick flip-up deck design. * HQ680 only Extreme Duty Spindles Cast iron spindle with 30mm diameter shaft and greaseable bearing. No Shear Pins Needed Ventrac decks are driven by a belt, not a PTO shaft. If the mower blade should get stuck on an obstacle, the PTO belt will slip rather than having a PTO shaft shear pin break. With a little practice, you can switch almost any attachment within a minute, without any tools or heavy lifting. RESOURCES The tough cut is one of our most popular attachments with the ability to mow down thick grass, weeds, and heavy brush up to one inch in diameter. Ventrac tractors provide a safer and more effective solution to slope mowing in addition to versatility and ease of use. Ventrac land owner tackles the overgrown brush, briar bushes, thorns, and 6ft high weeds with a Ventrac, clearing off 30 degree slopes, and a wet creek bed and making them passable again. Outdoorsman and avid hunter, Les Jones, controls invasive brush and briar growth with the Ventrac Tough Cut mower. Superintendent Mark Smith describes reduction in mowing time now that they are using Ventrac equipment. The Ventrac Tough Cut Mower deck has an industry leading design to tackle the toughest of brush mowing jobs. The Town of Apex was accustomed to large machinery which damaged turf and left a mess. Watch why compact is better for the town. See how this golf course uses Ventrac equipment in the fall. How do you bring back to life five years of neglect and overgrowth on a macadamia nut farm in the wilds of Australia? By using a Ventrac, of course! When a homeowner is faced with perpetually wet or low-lying property, it can be a challenge to find the right machine to tread the land. On this particular property, the homeowners were astounded at the capabilities of the Ventrac. Owning the land for 30 years, they have seen many different machines try to achieve what the Ventrac did on this day. Cameron McMillan is the founder and owner of DJuke Limited, a Sports Turf Contractor in the UK. DJuke specializes in drainage solutions for turf surfaces in the UK and their services allow sports turf facilities like golf courses to stay open longer in inclement weather by allowing proper drainage on the course. hq680 SPECIFICATIONS
Specifications 39.55104 Info Picture Sales Model HQ680 Full Description HQ, HQ680 Mower, Tough Cut Product Type Attachment Category Product Type Attachment Attachment Type Mower Front Mount Ventrac Mount System 4000 Series Mount Mower Type Rough Mower Specs Cutting Width 68 in Discharge Type Rear Flip-Up Deck Tilt up deck Cutting Positions 3 Cutting Heights (Standard) 3 in, 3 5⁄ 8 in, 4 1⁄ 4 in Cutting Height Range with Optional S 3 1⁄ 2 - 7 in in 1/2 inch (12.7 mm) increments Number of Blades 3 Blade Type 5⁄ 16x2 1⁄ 2x 23 in Deck Construction Multi-Gauge 5/16 inch (7.9 mm) at spindle mount Deck Suspension Gauge Wheels, Tractor Dimensions Length 45 in Overall Height 18 in Overall Width 69 in Weight 360 lbs We've actually run tests with the crew and with the Ventrac units, and what we've found is the one Ventrac can replace twelve guys with large commercial grade weed eaters. The machines are just that much more efficient. Glenn Garrett View Testimonial Over the years, we have bought approximately sixty-five Ventrac's. They are faster, easier to maintain, and do a better job on the wet slopes. Glenn Garrett View Testimonial We use our Ventrac for every job possible. I'm amazed at how many times we use this tractor for jobs I never thought it could do! Ryan Sprunger View Testimonial GALLERY Enlarge Picture / Press Link · Ventrac 4500 with Tough Cut Mower - The tough cut mower tackles high grass, brush, weeds, small saplings, and thick vegetation Enlarge Picture / Press Link · Ventrac 4500 downhill mowing with Tough Cut (zoom in) - Tall and unruly weeds can be a chore on hills and slopes without the stability and effectiveness of the Ventrac 4500 and Tough Cut deck. Enlarge Picture / Press Link · Ventrac 4500 downhill mowing with Tough Cut (zoom out) - Zero turn mowers and economy lawn tractors are incapable of safely tackling slopes, especially with thick overgrown brush, but the Ventrac 4500 with Tough Cut is designed to perform in such conditions much more safely. Enlarge Picture / Press Link · Ventrac 4500 with Tough Cut Mower downhill mowing - Instead of a crew of guys with weed trimmers taking hours, if not days, to tackle hills and thickets like this the Ventrac 4500 with Tough Cut mowing deck can simplify the task enough that only one person can do it all in far less time. Enlarge Picture / Press Link · Ventrac 4500P using Tough Cut mower - See the difference Ventrac makes with hard to maintain and overgrown areas. Enlarge Picture / Press Link · Ventrac 4500 and the Tough Cut mower deck - All wheel drive and an oscillating frame help you tackle the roughest terrain while the Tough Cut clears away overgrown vegetation. Enlarge Picture / Press Link · Ventrac 4500Z tackles saplings with the Tough Cut - The Tough Cut is capable of cutting tree saplings up to one inch in diameter. Tractor shown with optional dual tires. Enlarge Picture / Press Link · Ventrac 4500 and Tough Cut at work in Australia - Even the wild untamed thickets of the land down under are reigned in by the Ventrac 4500 with Tough Cut mower deck. Enlarge Picture / Press Link · Ventrac 4500Y mowing tall grass with the HQ680 - Grasses and weeds exceeding six feet in height are reduced to a pile of mulched clippings with the Tough Cut mowing deck. Enlarge Picture / Press Link · Ventrac 4500P Mowing fields with the Tough Cut - The Ventrac 4500 pictured with optional dual wheels mows an overgrown field with the Tough Cut mower deck. Enlarge Picture / Press Link · Ventrac 4500 with Tough Cut Mower clearing weeds - No need to hide indoors during allergy season. Take back your fields and overgrown areas with the Ventrac 4500 and Tough Cut mower. Enlarge Picture / Press Link · Ventrac 4500K using Tough Cut mower - Ventrac makes it possible to go where other tractors and equipment cannot. Enlarge Picture / Press Link · Ventrac 4500 downhill mowing with Tough Cut - The stability of all-wheel drive makes clearing thick brush possible with the Tough Cut mower deck. Enlarge Picture / Press Link · Ventrac 4500Z downhill brush mowing HQ680 - The Ventrac 4500 with Tough Cut mowing deck can simplify the task of clearing large hills of brush that only one person can do it all in far less time than a crew of people with trimmers. Enlarge Picture / Press Link · Ventrac 4500 climbing hills with AWD - All-wheel drive Ventrac tractors handle hills better than other tractors and articulated steering increases maneuverability for safer operation on slopes. Enlarge Picture / Press Link · Ventrac 4500Z conquers the coppice - Small saplings and thick brush are much simpler to conquer using the Tough Cut mower for the Ventrac 4500. Pictured with optional dual wheels. Enlarge Picture / Press Link · Ventrac 4500 Clears a path with the HQ680 - The advantage of front-mounted deck is the ability to clear a path in front of the tractor making it easier to maneuver and does not trample the vegetation before it gets cut. Enlarge Picture / Press Link · Ventrac 4500 uses Tough Cut on hill - Even on slopes the Ventrac 4500 with Tough Cut Mower can still get the job done. Enlarge Picture / Press Link · Ventrac 4500 and the Tough Cut versus Massive Weeds - Giant weeds that tower over the Ventrac 4500 are laid low by the HQ680 Tough Cut Mower Deck. Enlarge Picture / Press Link · Ventrac 4500 mowing with the HQ680 - Taming the wild areas is easier with the Ventrac 4500 and the Tough Cut mower. Enlarge Picture / Press Link · Ventrac Conquers Brush with Tough Cut - Create usable space out of an overgrown area faster and simpler with Ventrac. Enlarge Picture / Press Link · Ventrac 4500 Boldly Mows with HQ680 - Going where no tractor has gone before Ventrac can maneuver in places larger equipment cannot and can get to areas you could not before. Enlarge Picture / Press Link · Ventrac 4500 Tackles Thicket with HQ680 - While most people would steer around such obstacles in budget tractors you can mow right through them with the Ventrac 4500 and Tough Cut Mower. Enlarge Picture / Press Link · Ventrac 4500 & Tough Cut Clears the Way - The Ventrac 4500 is a literal trailblazer with the HQ680 Tough Cut mower, making a path where most conventional tractors can't. Enlarge Picture / Press Link · Picking Spring Flowers Ventrac Style - The HQ680 Mower Deck is powerful enough to take down one inch saplings yet can still neatly mow a field of wildflowers. Enlarge Picture / Press Link · Ventrac 4500 Tends the Vines - Ventrac is such a versatile machine that places like tree farms and vineyards find it an indispensable tool for the success of their business. Enlarge Picture / Press Link · Ventrac 4500 Mowing High Grass - The Tough Cut Mower is perfect for places such as vineyards because its ability to cut everything from overgrown grass to saplings while reducing flying material that damages nearby vines and plants. Enlarge Picture / Press Link · Ventrac 4500K using the HQ680 Tough Cut - The Tough Cut mower is able to mow thoroughly through both thick brush and clumps of dead grass. Enlarge Picture / Press Link · Ventrac 4500K Mowing - The Tough Cut mower can leave behind beautiful results despite its power and performance. Enlarge Picture / Press Link · HQ680 Tough Cut Mower Closeup (Top) - The Tough Cut has an easy access cover to allow for belt maintenance and features several height adjustments. Enlarge Picture / Press Link · Ventrac 4500P and HQ680 Mower Deck - The Ventrac 4500 and Tough Cut mower can do with one person what a team of people with weed eaters would be needed to do. Enlarge Picture / Press Link · Ventrac 4500P Uphill Mowing with Tough Cut - With the Tough Cut Mower and the Ventrac all-wheel drive tractor uphill mowing is not an uphill battle. Enlarge Picture / Press Link · Ventrac 4500P Downhill Mowing with Tough Cut - The stability and control of the Ventrac 4500 helps give you a more complete cut on slopes even going downhill.
