Product Overview

The Ventrac MR740 Triplex Reel Mower is designed to be the ultimate trim and surround mower. With a 74" width of cut, variable speed hydraulics, standard back lapping valves, and offset capability, the Ventrac MR740 includes many features to ensure superior, low-maintenance powered by the all-wheel performance.

When powered by the all-wheel drive Ventrac 4500 tractor with dual wheels, the MR740 can be operated on hills and slopes up to 30 degrees -- allowing you to go where no other reel mower can go. You will be amazed at the time and labor you'll save, and the beauty you'll leave behind.

MODELS

MR740 REEL MOWER 39.55130

ACCESSORY OPTIONS

23.0111-7 KIT, SPOOL FLOAT HYD. VALVE

PRODUCT BENEFITS

Up For The Challenge

With the industry's best 30-degree slope rating, you can confidently take reels to difficult places greatly reducing walk behind mowing.
Heavy Duty & Quality

These heavy duty reels are built to last. You will be amazed by the superior cutting edge retention and life of the bed-knife and reels.
Offset Capability

The reels can be offset right and left of center to allow for better trimming around tight turns, and to position the tractor farther from hazards such as water or bunkers for increased safety.
Variable Speed Reels

Adjust reel speed to match your conditions. Variable speed motors also feature a bypass allowing you to run just one to two reels at a time should you have narrower trim areas or need to cut surrounds.

RESOURCES

Sultans Run

The steep slopes and difficult terrains made Ventrac the ideal tractor for this course.
Golf Course Equipment Solutions by Ventrac

Introduction to Ventrac's complete golf course management package.
Hawk's Nest Golf Course at Ohio State

Superintendent Mark Smith describes a 60% to 70% reduction in hand mowing and trimming needs with the Ventrac's ability to mow steep grades and around bunkers and tee boxes without scalping. Hawk's Nest Golf Course is owned and Operated by Ohio State University Agricultural Technical Institute (ATI).

mr740 SPECIFICATIONS

Measurement System:
Standard

Metric

Specifications	39.55130
Info
Sales Model	MR740
Full Description	MR, MR740 Reel Mower
Product Type	Attachment
Category
Product Type	Attachment
Attachment Type	Mower
Front Mount	Ventrac Mount System
4000 Series Mount
Mower Type	Finish
Mower Specs
Cutting Width	74 in
Discharge Type	Rear
Flip-Up Deck	Not Available
Cutting Positions	Infinite
Cutting Heights (Standard)	.3937 - 2.3622 in
Deck Construction	Multi-Gauge .22 inch (56 mm) at spindle mount
Deck Suspension	Front Roller (grooved) Rear Roller (smooth)
Dimensions
Length	48 in
Overall Height	22 in
Overall Width	84 in
Weight	613 lbs
Length of Tractor with Deck Up	not a flipup deck
Reel Specs
Reel Drive	Hydraulic
Cutting Units	3
Reel Speed	0-1600 RPM Standard
Backlapping	Standard w/ individual bypass valves
Reel Diameter	7 in
Reel Blades	7
Adjustment	Reel to Bedknife

Downloads

Specifications Sheet
Size: 656.16 KB

V-Plus Warranty:

* Warranty Info

Commercial: 2 year*

FREQUENCY OF CLIP CALCULATOR

GALLERY

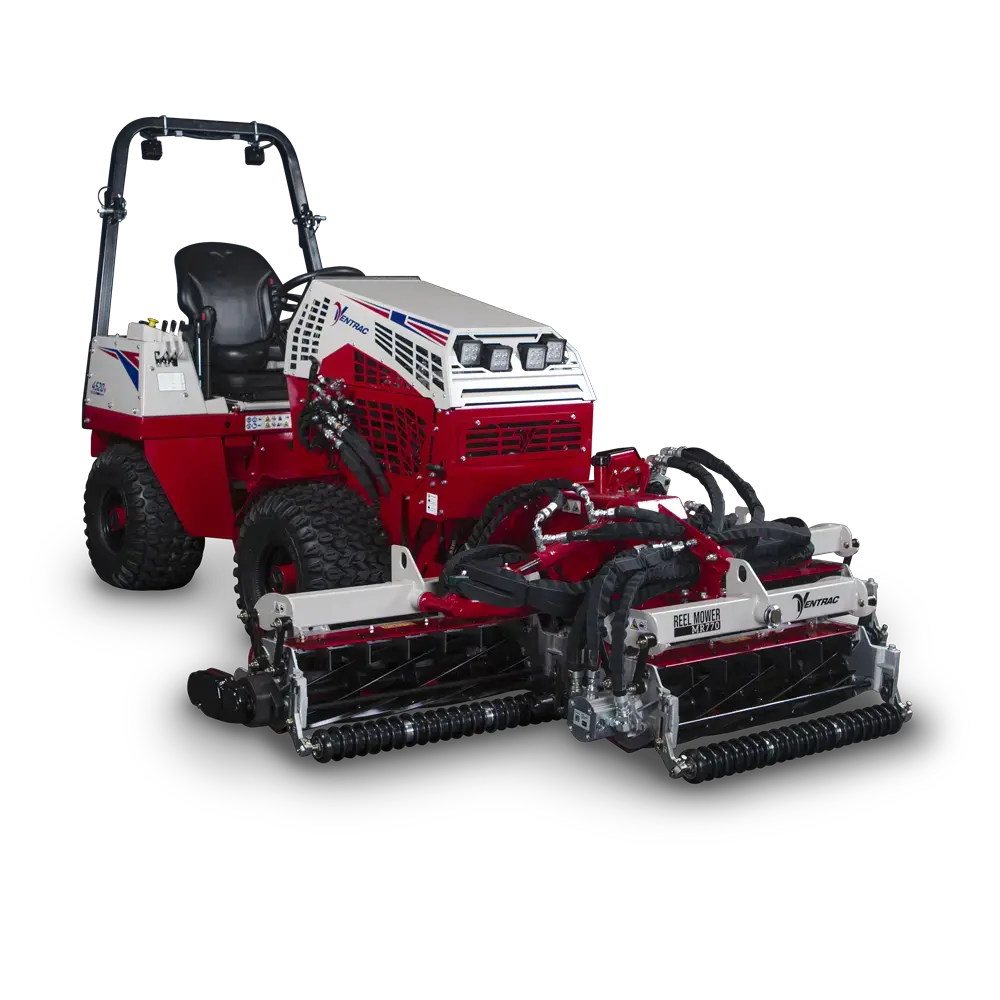

Enlarge Picture / Press Link · Ventrac MR740 Reel Mower Closeup - The Ventrac MR740 Triplex Reel Mower is designed to be the ultimate trim and surround mower. With a 74" width of cut, variable speed hydraulics, standard back lapping valves, and offset capability, the Ventrac MR740 includes many features to ensure superior, low-maintenance powered by the all-wheel performance.

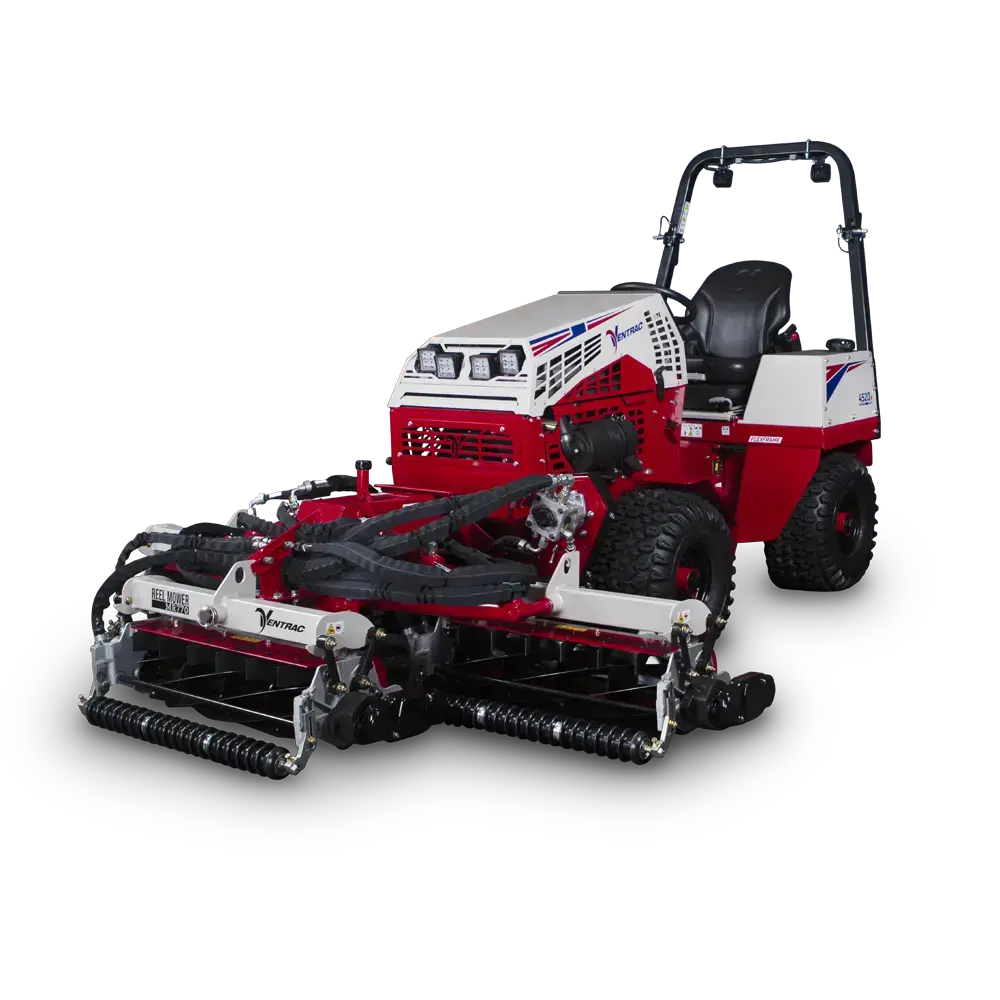

Enlarge Picture / Press Link · Ventrac MR740 Reel Mower on 4500Y - When powered by the all-wheel drive Ventrac 4500 tractor with dual wheels, the MR740 can be operated on hills and slopes up to 30 degrees -- allowing you to go where no other reel mower can go. You will be amazed at the time and labor you'll save, and the beauty you'll leave behind.
