KT4200 4200 VXD

KT4200

Product Overview

This product has been discontinued.

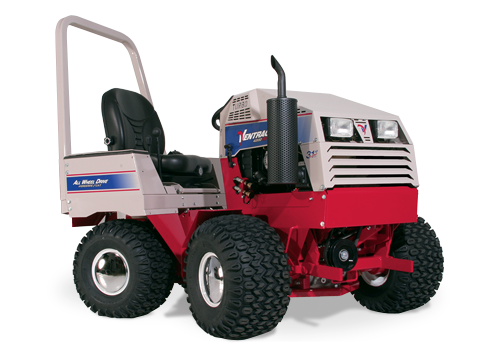

The Ventrac 4200VXD takes compact tractors to an all new level. An articulating and oscillating frame enhances maneuverability and stability over traditional tractors by conforming to the contour of the terrain. The attachment is placed out front in natural view offering greater precision as well as maximum protection for the operator.

Ventrac's patented S.D.L.A. control, located next to the operator, allows for easy control of Speed, Direction, Lift and Auxiliary function all with one hand. Other standard features include Power Steering, Electric PTO with Brake, Easy Shift Operation, Roll Bar with Seat Belt, Comfort Seat and much more.

Over 30 Ventrac attachments let you choose from a variety of tasks. From mowing to blowing, tilling to trenching, digging to drilling, pushing to pulling, Ventrac is designed and built to work when you need it all year round.

Additional Downloads:

MODELS

4226D KT, 4200 VANGUARD DM950D 39.51204

4227 KT, 4200 KAWASAKI GASOLINE 39.51200

4231 KT, 4200 VANGUARD DM950G 39.51203

4231TD KT, 4200 VANGUARD TURBO DIESEL 39.51205

ACCESSORY OPTIONS

70.4063-99 KT, OPT. 3 POINT HITCH FACTORY

47.0231-99 KIT, KT SUSPENSION SEAT FACTRY

70.2004-99 ROLL BAR, FOLD DN ROPS FACTORY

53.0101-99 WHEEL, ASM 21X11X8 BAR-FACTORY

53.0137-99 WHEEL, ASM 22X11X10 TURF FACTRY

RESOURCES

kt4200 SPECIFICATIONS

Measurement System:

Specifications 39.51200 39.51203 39.51204 39.51205
Info
Sales Model 4227 4231 4226D 4231TD
Full Description KT, 4200 Kawasaki Gasoline KT, 4200 Vanguard DM950G KT, 4200 Vanguard DM950D KT, 4200 Vanguard Turbo Diesel
Product Type Tractor Tractor Tractor Tractor
Engine
Engine Manufacturer Kawasaki B&S Daihatsu B&S Daihatsu B&S Daihatsu
Model # FD750D Vanguard DM950D Vanguard DM950DT
Horsepower 27 hp 31 hp 2612 hp 31 hp Turbo
Engine Disp. 746 cc 953 cc 953 cc 953 cc
Num. of Cylinders 2 3 3 3
Cooling Liquid Liquid Liquid Liquid
Fuel Capacity 6 gal 714 gal 714 gal 714 gal
Fuel Type Gas Gas Diesel Diesel
Drive System
Drive AWD All Wheel Drive AWD All Wheel Drive AWD All Wheel Drive AWD All Wheel Drive
Travel Speed - Low Range 5.2 mph 5.2 mph 5.2 mph 5.2 mph
Travel Speed - High Range 10 mph 10 mph 10 mph 10 mph
Dimensions
Weight 1500 lbs 1560 lbs 1560 lbs 1630 lbs
Tires
All Terrain standard 22x12-8 standard 22x12-8 standard 22x12-8 standard 22x12-8
Turf standard 22x11-10 standard 22x11-10 standard 22x11-10 standard 22x11-10
Bar standard 21x11-8 standard 21x11-8 standard 21x11-8 standard 21x11-8
General
Turning Radius 43 in 43 in 43 in 43 in

Downloads

V-Plus Warranty:

Commercial: 2 year*
